2.5 Data Arrays - Machine Learning in the Geosciences

This lecture introduces arrays.

1. Why Manipulate Arrays in Geoscientific Data?¶

Data Complexity: Geoscientific data is often multidimensional (e.g., 3D grids for seismic data, 4D climate models with time). Arrays offer efficient ways to store and manipulate such data.
Data Transformation: Preprocessing geoscientific data often involves transformations such as normalization, aggregation, resampling, and feature extraction, all of which require array manipulation.
Performance: Arrays provide optimized data structures that make operations faster and more memory efficient. This matters when working with large datasets (e.g., satellite imagery, climate models).
Model Input: Machine learning models, especially deep learning, often require structured data inputs in the form of arrays or tensors.

Overview of Array Libraries

NumPy Arrays: The foundation for numerical computing in Python. Offers basic array operations, efficient mathematical functions, and indexing/slicing tools.
Xarray: Designed for labeled, multi-dimensional data. Xarray is ideal for geoscientific data that has labels for each dimension (e.g., time, latitude, longitude).
PyTorch Tensors: A library primarily for deep learning. It allows for GPU-accelerated tensor operations and is useful when geoscientific problems intersect with machine learning tasks.

At all levels, we will practice

Matplotlib python package that provides functionalities for basic plotting.

🖥️ Lecture slides — Session 06 (Mon Oct 12)

2. Numpy arrays¶

Sequence of data can be stored in python lists. Lists are very flexible; data of identical type can be appended to list on the fly.

Numpy arrays area multi-dimensional objects of specific data types (floats, strings, integers, ...). ! Numpy arrays should be declared first ! Allocating memory of the data ahead of time can save computational time. Numpy arrays support arithmetic operations. There are numerous tutorials to get help, such as on Earth Data Science.

# import module
import numpy as np

# define an array of dimension one from.
#this is a list of floats:
a=[0.7 , 0.75, 1.85]
# convert a list to a numpy array
a_nparray = np.array(a)

2.1 1D arrays in Numpy¶

1-D arrays are also called vectors. The Numpy function arange will create regularly spaced values within a specific range. It is similar to the python function range.

# create 1D arrays
N=100
x_int = np.arange(N)# this will make a vector of int from 0 to N-1
print(x_int)

[ 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47
 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71
 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95
 96 97 98 99]

N = 100 # number of points

# linearly spaced vectors
x_lat = np.linspace(39,50,N)# this will make a vector of floats from min to max values evenly spaced
x_lon = np.linspace(-128,-125,N)# same for longitude
print(x_lat)
print(x_lon)



# logspaced vectors
# 10^(-1) -> 10^(1) => 0.1 - 1
x_tl = np.logspace(-1,1,N)

print(x_tl)

[39.         39.11111111 39.22222222 39.33333333 39.44444444 39.55555556
 39.66666667 39.77777778 39.88888889 40.         40.11111111 40.22222222
 40.33333333 40.44444444 40.55555556 40.66666667 40.77777778 40.88888889
 41.         41.11111111 41.22222222 41.33333333 41.44444444 41.55555556
 41.66666667 41.77777778 41.88888889 42.         42.11111111 42.22222222
 42.33333333 42.44444444 42.55555556 42.66666667 42.77777778 42.88888889
 43.         43.11111111 43.22222222 43.33333333 43.44444444 43.55555556
 43.66666667 43.77777778 43.88888889 44.         44.11111111 44.22222222
 44.33333333 44.44444444 44.55555556 44.66666667 44.77777778 44.88888889
 45.         45.11111111 45.22222222 45.33333333 45.44444444 45.55555556
 45.66666667 45.77777778 45.88888889 46.         46.11111111 46.22222222
 46.33333333 46.44444444 46.55555556 46.66666667 46.77777778 46.88888889
 47.         47.11111111 47.22222222 47.33333333 47.44444444 47.55555556
 47.66666667 47.77777778 47.88888889 48.         48.11111111 48.22222222
 48.33333333 48.44444444 48.55555556 48.66666667 48.77777778 48.88888889
 49.         49.11111111 49.22222222 49.33333333 49.44444444 49.55555556
 49.66666667 49.77777778 49.88888889 50.        ]
[-128.         -127.96969697 -127.93939394 -127.90909091 -127.87878788
 -127.84848485 -127.81818182 -127.78787879 -127.75757576 -127.72727273
 -127.6969697  -127.66666667 -127.63636364 -127.60606061 -127.57575758
 -127.54545455 -127.51515152 -127.48484848 -127.45454545 -127.42424242
 -127.39393939 -127.36363636 -127.33333333 -127.3030303  -127.27272727
 -127.24242424 -127.21212121 -127.18181818 -127.15151515 -127.12121212
 -127.09090909 -127.06060606 -127.03030303 -127.         -126.96969697
 -126.93939394 -126.90909091 -126.87878788 -126.84848485 -126.81818182
 -126.78787879 -126.75757576 -126.72727273 -126.6969697  -126.66666667
 -126.63636364 -126.60606061 -126.57575758 -126.54545455 -126.51515152
 -126.48484848 -126.45454545 -126.42424242 -126.39393939 -126.36363636
 -126.33333333 -126.3030303  -126.27272727 -126.24242424 -126.21212121
 -126.18181818 -126.15151515 -126.12121212 -126.09090909 -126.06060606
 -126.03030303 -126.         -125.96969697 -125.93939394 -125.90909091
 -125.87878788 -125.84848485 -125.81818182 -125.78787879 -125.75757576
 -125.72727273 -125.6969697  -125.66666667 -125.63636364 -125.60606061
 -125.57575758 -125.54545455 -125.51515152 -125.48484848 -125.45454545
 -125.42424242 -125.39393939 -125.36363636 -125.33333333 -125.3030303
 -125.27272727 -125.24242424 -125.21212121 -125.18181818 -125.15151515
 -125.12121212 -125.09090909 -125.06060606 -125.03030303 -125.        ]
[ 0.1         0.10476158  0.10974988  0.1149757   0.12045035  0.12618569
  0.13219411  0.13848864  0.14508288  0.15199111  0.15922828  0.16681005
  0.17475284  0.18307383  0.19179103  0.2009233   0.21049041  0.22051307
  0.23101297  0.24201283  0.25353645  0.26560878  0.27825594  0.29150531
  0.30538555  0.31992671  0.33516027  0.35111917  0.36783798  0.38535286
  0.40370173  0.42292429  0.44306215  0.46415888  0.48626016  0.5094138
  0.53366992  0.55908102  0.58570208  0.61359073  0.64280731  0.67341507
  0.70548023  0.7390722   0.77426368  0.81113083  0.84975344  0.89021509
  0.93260335  0.97700996  1.02353102  1.07226722  1.12332403  1.17681195
  1.23284674  1.29154967  1.35304777  1.41747416  1.48496826  1.55567614
  1.62975083  1.70735265  1.78864953  1.87381742  1.96304065  2.05651231
  2.15443469  2.25701972  2.36448941  2.47707636  2.59502421  2.71858824
  2.84803587  2.98364724  3.12571585  3.27454916  3.43046929  3.59381366
  3.76493581  3.94420606  4.1320124   4.32876128  4.53487851  4.75081016
  4.97702356  5.21400829  5.46227722  5.72236766  5.9948425   6.28029144
  6.57933225  6.8926121   7.22080902  7.56463328  7.92482898  8.30217568
  8.69749003  9.11162756  9.54548457 10.        ]


# time vectors
x_t = np.linspace(0,100,N+1)
dt=x_t[1]
print(dt)

1.0

Indexing Numpy arrays

Accessing individual elements is done using squared brackets []. First element is indexed at 0, last element is indexed at -1.

arr = np.arange(5)

# Access the first element (index 0)
element = arr[0]
print(element)  # Output: 0

# Access the fourth element (index 3)
element = arr[3]
print(element)  # Output: 3

# Access the last element (index 4)
element = arr[4]
print(element)  # Output: 4

# Access the last element with negative indexing
element = arr[-1]
print(element)  # Output: 4

Slicing

We can slice arrays using the basic syntax start:stop:step:

x=np.arange(10)
print(x)

[0 1 2 3 4 5 6 7 8 9]

# slice with a step: every second element from index 2 up to (but not including) index 10
x1 = x[2:10:2]
print(x1)

[2 4 6 8]

Create an array that select every other elements

# answer here

Create an array with a reversed ordered indexes:

# answer here
# note: x[10:0:-1] counts down from index 9 but stops before index 0, so the first element is dropped;
# x[::-1] reverses the full array
x[10:0:-1]

array([9, 8, 7, 6, 5, 4, 3, 2, 1])

2.2 Plotting with Matplotlib¶

Some tips from Sofware-Carpentry

Make sure your text is large enough to read. Use the fontsize parameter in xlabel, ylabel, title, and legend, and tick_params with labelsize to increase the text size of the numbers on your axes.
Similarly, you should make your graph elements easy to see. Use s to increase the size of your scatterplot markers and linewidth to increase the sizes of your plot lines.
Using color (and nothing else) to distinguish between different plot elements will make your plots unreadable to anyone who is colorblind, or who happens to have a black-and-white office printer. For lines, the linestyle parameter lets you use different types of lines. For scatterplots, marker lets you change the shape of your points. If you’re unsure about your colors, you can use Coblis or Color Oracle to simulate what your plots would look like to those with colorblindness.

# make the plots appear in the notebook
%matplotlib inline
import matplotlib.pyplot as plt
# import matplotlib.pylab as pylab

# set default parameters
params = {'legend.fontsize': 14, \
          'xtick.labelsize':14, \
          'ytick.labelsize':14, \
          'font.size':14}
plt.rcParams.update(params)

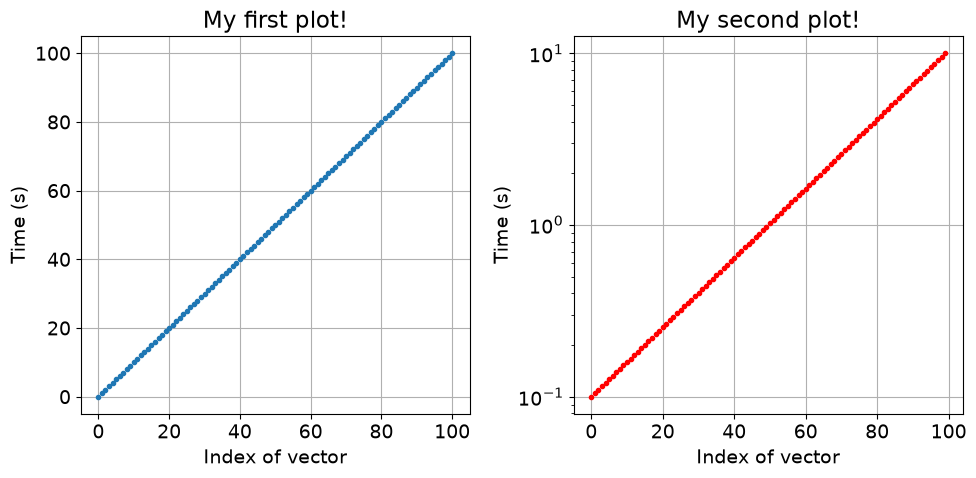

fig, (ax1,ax2) = plt.subplots(1,2, figsize=(10,5))  #
ax1.plot(x_t,'.') # plot the vector x_t
ax2.plot(x_tl,'r.');ax2.set_yscale('log') # plot the vector x_tl in red and log scale
ax2.set_xlabel('Index of vector') # set the x-axis label
ax1.set_xlabel('Index of vector') # set the x-axis label
ax2.set_ylabel('Time (s)') # set the y-axis label
ax1.set_ylabel('Time (s)') # set the y-axis label
ax1.set_title('My first plot!')
ax2.set_title('My second plot!') ;
plt.tight_layout()
ax1.grid(True)
ax2.grid(True)

2.3 Random Arrays¶

Synthetic arrays drawn from statistical distributions are useful for testing code and for building intuition about real data. The modern NumPy idiom is to create a random generator once with np.random.default_rng(seed) and draw from it; the seed makes results reproducible.

Rather than unit-less noise, we draw samples that stand for physical quantities:

Uniform: sensor calibration offsets between -1 and 1 (arbitrary units).
Gaussian: measurement noise with zero mean and standard deviation 1.
Poisson: daily counts of earthquakes above a magnitude threshold in an active region. Counting processes with a constant rate follow a Poisson distribution; here the rate is 4 events per day.
Gutenberg-Richter magnitudes: earthquake magnitudes follow a power law; the number of events with magnitude at or above m decays as 10**(-b*m) with b close to 1. The course package mlgeo_synth provides a sampler.

Statistics functions in NumPy: https://numpy.org/doc/stable/reference/routines.statistics.html

import mlgeo_synth

rng = np.random.default_rng(42)

N=10000 # number of samples
# Uniform distribution: calibration offsets between -1 and 1
x1 = 2*rng.random(N) - 1
# Gaussian distribution: measurement noise, mean 0, standard deviation 1
x2 = rng.standard_normal(N)
# Poisson distribution: daily counts of M>=3 earthquakes, rate of 4 per day
rate = 4
daily_counts = rng.poisson(rate, N)
# Gutenberg-Richter law: earthquake magnitudes, b-value of 1
magnitudes = mlgeo_synth.gutenberg_richter_magnitudes(n=N, b=1.0, m_min=1.0, m_max=8.0, seed=42)

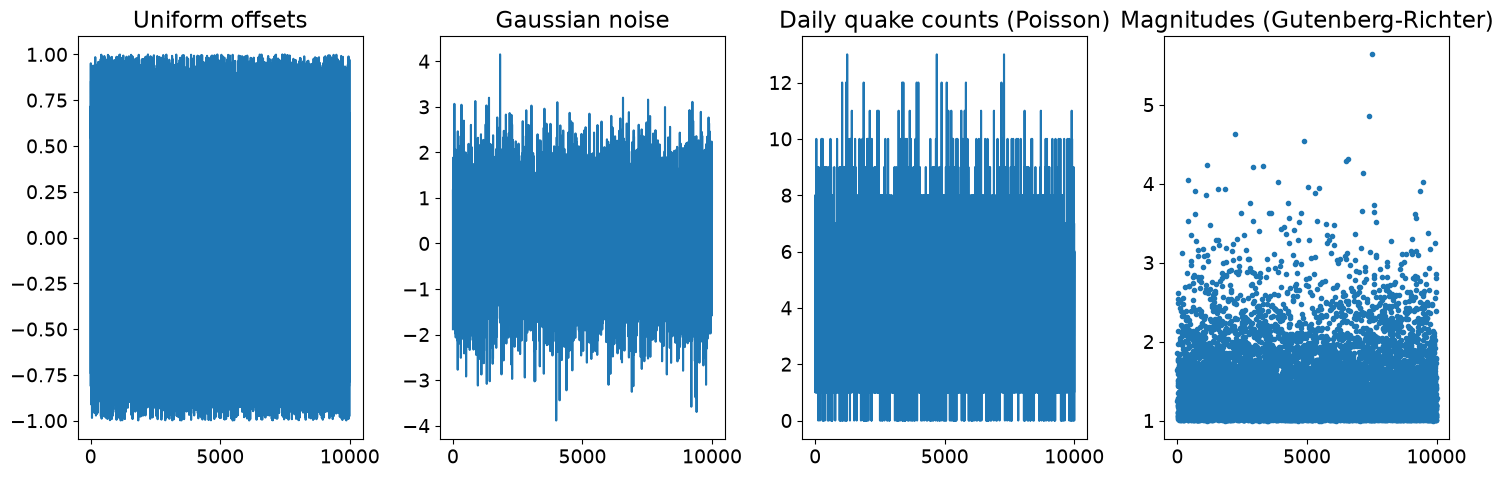

# raw sample series
fig1, (ax1,ax2,ax3,ax4) = plt.subplots(1,4, figsize=(15,5))
ax1.plot(x1);ax1.set_title('Uniform offsets')
ax2.plot(x2);ax2.set_title('Gaussian noise')
ax3.plot(daily_counts);ax3.set_title('Daily quake counts (Poisson)')
ax4.plot(magnitudes,'.');ax4.set_title('Magnitudes (Gutenberg-Richter)')
plt.tight_layout()

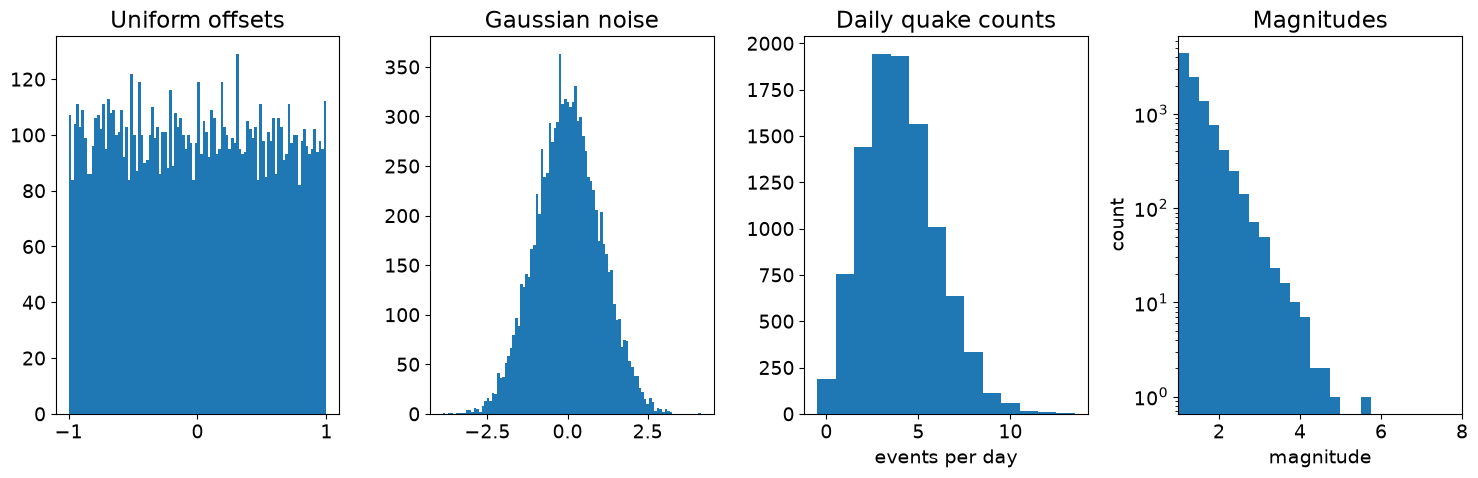

# histograms
fig2, (ax11,ax12,ax13,ax14) = plt.subplots(1,4, figsize=(15,5))
ax11.hist(x1,bins=100);ax11.set_title('Uniform offsets')
ax12.hist(x2,bins=100);ax12.set_title('Gaussian noise')
ax13.hist(daily_counts,bins=np.arange(-0.5, daily_counts.max()+1.5));ax13.set_title('Daily quake counts')
ax13.set_xlabel('events per day')
ax14.hist(magnitudes,bins=np.arange(1.0, 8.25, 0.25))
ax14.set_yscale('log')
ax14.set_xlim(1, 8)
ax14.set_title('Magnitudes')
ax14.set_xlabel('magnitude');ax14.set_ylabel('count')
plt.tight_layout()

The magnitude histogram uses a log-scale count axis. On that axis the Gutenberg-Richter distribution is a straight line with slope proportional to -b. That straight line is the sanity check that the sampler follows the law.

# numpy has built-in functions to calculate basic statistical properties of numpy arrays
print("mean of x1:", np.mean(x1), " std of x1:", np.std(x1))
print("mean of x2:", np.mean(x2), " std of x2:", np.std(x2))
print("mean daily earthquake count:", np.mean(daily_counts))

mean of x1: -0.005756804861331685  std of x1: 0.5764130181203542
mean of x2: 0.01404658670547432  std of x2: 1.0019904766577135
mean daily earthquake count: 4.0142

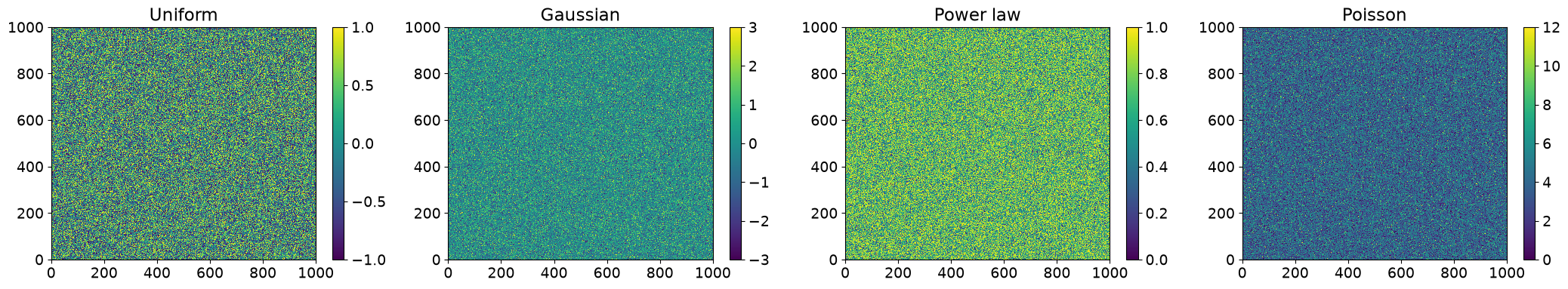

2.4 2D arrays in Numpy¶

We will now create random 2D arrays

N=1000 # number of samples
# Uniform distribution between -1 and 1
x1 = 2*rng.random((N,N)) - 1
# Gaussian distribution with a standard deviation of 1
x2 = rng.standard_normal((N,N))
# Power-law distribution, values between 0 and 1
a=2 # power of the distribution
x3 = rng.power(a, (N,N))
# Poisson distribution with a rate of 4
rate = 4
x4 = rng.poisson(rate, (N,N))

# Pick vmin/vmax to match each distribution so the colorbar reflects the data:
# uniform spans [-1, 1], Gaussian mostly [-3, 3], power law [0, 1], Poisson counts [0, ~12]
fig, (ax1,ax2,ax3,ax4) = plt.subplots(1,4, figsize=(26,4))
im1 = ax1.pcolor(x1, vmin=-1, vmax=1);ax1.set_title('Uniform');fig.colorbar(im1, ax=ax1)
im2 = ax2.pcolor(x2, vmin=-3, vmax=3);ax2.set_title('Gaussian');fig.colorbar(im2, ax=ax2)
im3 = ax3.pcolor(x3, vmin=0, vmax=1);ax3.set_title('Power law');fig.colorbar(im3, ax=ax3)
im4 = ax4.pcolor(x4, vmin=0, vmax=12);ax4.set_title('Poisson');fig.colorbar(im4, ax=ax4)

Bonus¶

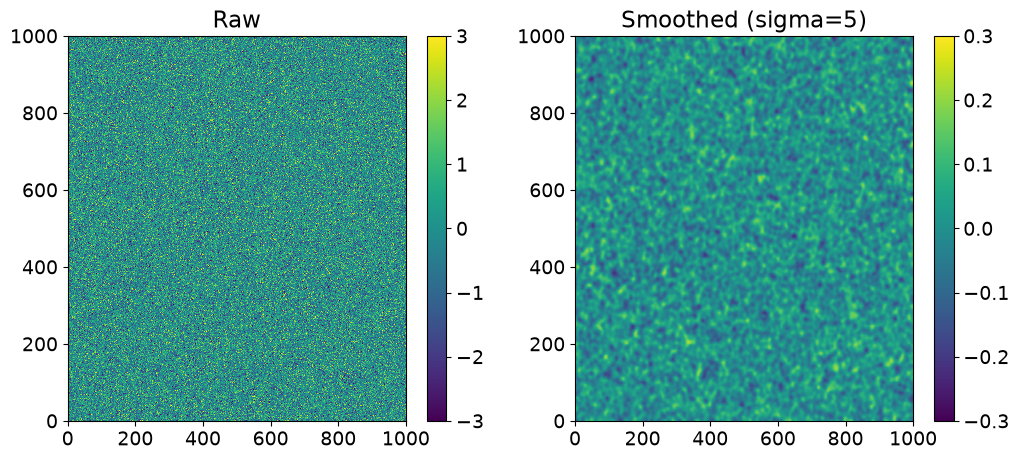

Learn how to smooth/blur these 2D arrays

# use scipy gaussian filtering to smooth the x2 array
from scipy.ndimage import gaussian_filter
x2_smooth = gaussian_filter(x2, sigma=5)
fig, (ax1,ax2) = plt.subplots(1,2, figsize=(12,5))  # 1 row, 2 columns
im1 = ax1.pcolor(x2, vmin=-3, vmax=3);ax1.set_title('Raw');fig.colorbar(im1, ax=ax1)
# smoothing shrinks the spread, so the smoothed field gets tighter color limits
im2 = ax2.pcolor(x2_smooth, vmin=-0.3, vmax=0.3);ax2.set_title('Smoothed (sigma=5)');fig.colorbar(im2, ax=ax2)

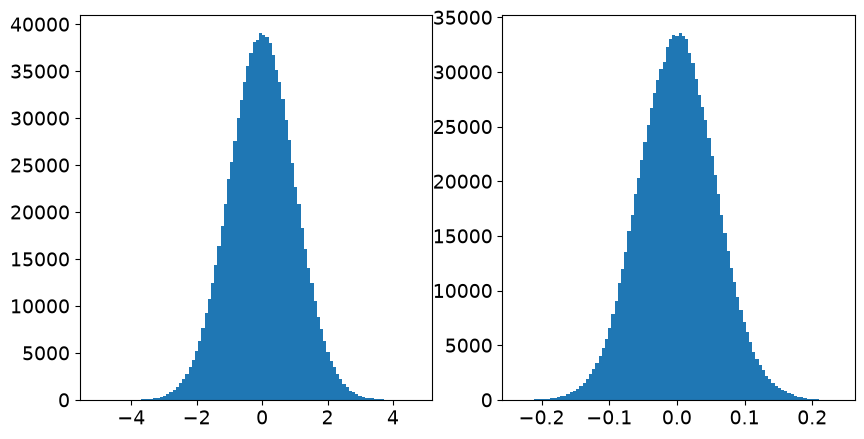

# check the distributions of both arrays before and after smoothing using histograms to compare
fig, (ax1,ax2) = plt.subplots(1,2, figsize=(10,5))  # 1 row, 2 co
ax1.hist(x2.flatten(),bins=100) # flatten the 2D array to 1D and plot the histogram
ax2.hist(x2_smooth.flatten(),bins=100);

2.5 Array Norms¶

$L_2$ norm of an array $X$ :

$||X||_2 = \sqrt{\sum_i^N X_i^2}$ In numpy that is the default norm of the linear algebra module linalg: np.linalg.norm(X)

We can normalize an array and will focus on which dimension the array is normalized.

# define random array: uniform distribution between -1 and 1
x1 = 2*rng.random(N) - 1
# calculate its norm
norm_x1 = np.linalg.norm(x1);print(norm_x1)
# normalize it
x1_norm = x1/norm_x1
# calculate its norm
norm_x1_norm = np.linalg.norm(x1_norm);print(norm_x1_norm)

18.589898293414336
1.0

2.6 Measures of distance¶

Comparing data often means calculating a distance or dissimilarity between two observations. Similarity corresponds to proximity of the observations.

Euclidean distance

$L_2$ norm of the residual between 2 vectors: the square root of the sum of squared differences,

$d = ||X -Y||_2 = \sqrt{\sum_i^N \left(X_i - Y_i \right)^2}$

In numpy that is the default norm of the linear algebra module linalg: d=np.linalg.norm(X-Y)

Total variation distance

Is the $L_1$ -norm equivalent of the Euclidean distance: d=np.linalg.norm(X-Y,ord=1)

Pearson coefficient (aka the correlation coefficient)

$P(X,Y) = \frac{cov(X,Y)}{std(X)std(Y)}$

$P(X,Y) = \frac{ \sum{ (X_i-mean(X)) (Y_i-mean(Y)}}{\sqrt{\sum{ (X_i-mean(X))^2 } \sum{ (Y_i-mean(Y))^2 } }}$

# compare 2 vectors:

x2 = rng.standard_normal(N)   # Gaussian distribution
x3 = rng.standard_normal(N)   # Gaussian distribution

# Euclidian distance
d2=np.linalg.norm(x3-x2)
# Total variation distance:
d1=np.linalg.norm(x3-x2,ord=1)
# Pearson coefficient
r = np.corrcoef(x2,x3)[0,1]

# check: the explicit square root of the sum of squared differences matches np.linalg.norm
dist = np.sqrt(np.sum((x3-x2)**2))

print("the three distances are:")
print(d2,d1,r,dist)

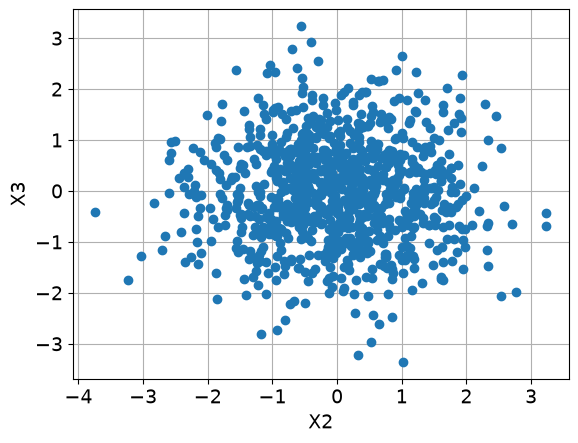

plt.plot(x2,x3,'o');plt.grid(True)
plt.xlabel('X2');plt.ylabel('X3')

the three distances are:
45.16131880498999 1137.8655493774831 0.006914382755631003 45.16131880498999

3. Xarrays¶

3.1 Xarray basics¶

This tutorial has been copied and modified from the Xarray package tutorials.

Geoscientific data comes with complex metadata that describe the meaning and context for data arrays. Xarray lets users attach metadata to data arrays, making it easier to keep track of variables, their units, coordinate systems, and other important data attributes. Because geoscientific data are typically multi-dimensional, integrating dimensions such as time and spatial coordinates lets users manipulate, transform, and perform complex operations on the data arrays. In particular, it simplifies slicing in time and space, and supports regridding and subsetting.

Xarray is well integrated with high performance computing, such as Dask, and storage such as HPC storage using NetCDF and cloud storage with Zarr.

Xarray was designed to facilitate the manipulation of geoscientific data.

Xarray objects are multi-dimensional arrays (“tensors”) that can have several attributes and dimensions. The core structure is DataArray, the N dimensional array that is similar to a pandas.Series. The second is the Dataset that is a multi-dimensional, in-memory array database. It is a dictionary like container of DataArray, the equivalent to pandas.DataFrame.

Xarrays can be read from netCDF and from Zarr.

You will find plenty of useful tutorials from the Xarray project, such as this.

Here is the Xarray tutorial book introducing Xarray from data structure to visualization. Generally, Xarray wraps Numpy and Pandas and behaves in a similar way as in Pandas. The transition to adopt Xarray should be smooth if you are familiar with Numpy and Pandas already.

import numpy as np
import xarray as xr
%matplotlib inline
%config InlineBackend.figure_format='retina'

ds = xr.tutorial.load_dataset("air_temperature")
ds

What are the keys/attributes of the data set?

# what are the key attributes of ds
print(ds.attrs)

{'Conventions': 'COARDS', 'title': '4x daily NMC reanalysis (1948)', 'description': 'Data is from NMC initialized reanalysis\n(4x/day).  These are the 0.9950 sigma level values.', 'platform': 'Model', 'references': 'http://www.esrl.noaa.gov/psd/data/gridded/data.ncep.reanalysis.html'}

Find two ways to print the values from attribute air

ds["air"]

ds.air

with xr.set_options(display_style="html"):
    display(ds)

The DataArray has named dimension:

ds.air.dims

('time', 'lat', 'lon')

and the coordinates are saved in .coord:

ds.air.coords

Coordinates:
  * time     (time) datetime64[ns] 23kB 2013-01-01 ... 2014-12-31T18:00:00
  * lat      (lat) float32 100B 75.0 72.5 70.0 67.5 65.0 ... 22.5 20.0 17.5 15.0
  * lon      (lon) float32 212B 200.0 202.5 205.0 207.5 ... 325.0 327.5 330.0

ds.air.attrs["long_name"]

'4xDaily Air temperature at sigma level 995'

Add new attributes

# assign your own attributes!
ds.air.attrs["who_is_awesome"] = "xarray"
ds.air.attrs

{'long_name': '4xDaily Air temperature at sigma level 995',
 'units': 'degK',
 'precision': np.int16(2),
 'GRIB_id': np.int16(11),
 'GRIB_name': 'TMP',
 'var_desc': 'Air temperature',
 'dataset': 'NMC Reanalysis',
 'level_desc': 'Surface',
 'statistic': 'Individual Obs',
 'parent_stat': 'Other',
 'actual_range': array([185.16, 322.1 ], dtype=float32),
 'who_is_awesome': 'xarray'}

The underlying data is a numpy array

print(type(ds.air.data))
print(ds.air.data)

<class 'numpy.ndarray'>
[[[241.2  242.5  243.5  ... 232.8  235.5  238.6 ]
  [243.8  244.5  244.7  ... 232.8  235.3  239.3 ]
  [250.   249.8  248.89 ... 233.2  236.39 241.7 ]
  ...
  [296.6  296.2  296.4  ... 295.4  295.1  294.7 ]
  [295.9  296.2  296.79 ... 295.9  295.9  295.2 ]
  [296.29 296.79 297.1  ... 296.9  296.79 296.6 ]]

 [[242.1  242.7  243.1  ... 232.   233.6  235.8 ]
  [243.6  244.1  244.2  ... 231.   232.5  235.7 ]
  [253.2  252.89 252.1  ... 230.8  233.39 238.5 ]
  ...
  [296.4  295.9  296.2  ... 295.4  295.1  294.79]
  [296.2  296.7  296.79 ... 295.6  295.5  295.1 ]
  [296.29 297.2  297.4  ... 296.4  296.4  296.6 ]]

 [[242.3  242.2  242.3  ... 234.3  236.1  238.7 ]
  [244.6  244.39 244.   ... 230.3  232.   235.7 ]
  [256.2  255.5  254.2  ... 231.2  233.2  238.2 ]
  ...
  [295.6  295.4  295.4  ... 296.29 295.29 295.  ]
  [296.2  296.5  296.29 ... 296.4  296.   295.6 ]
  [296.4  296.29 296.4  ... 297.   297.   296.79]]

 ...

 [[243.49 242.99 242.09 ... 244.19 244.49 244.89]
  [249.09 248.99 248.59 ... 240.59 241.29 242.69]
  [262.69 262.19 261.69 ... 239.39 241.69 245.19]
  ...
  [294.79 295.29 297.49 ... 295.49 295.39 294.69]
  [296.79 297.89 298.29 ... 295.49 295.49 294.79]
  [298.19 299.19 298.79 ... 296.09 295.79 295.79]]

 [[245.79 244.79 243.49 ... 243.29 243.99 244.79]
  [249.89 249.29 248.49 ... 241.29 242.49 244.29]
  [262.39 261.79 261.29 ... 240.49 243.09 246.89]
  ...
  [293.69 293.89 295.39 ... 295.09 294.69 294.29]
  [296.29 297.19 297.59 ... 295.29 295.09 294.39]
  [297.79 298.39 298.49 ... 295.69 295.49 295.19]]

 [[245.09 244.29 243.29 ... 241.69 241.49 241.79]
  [249.89 249.29 248.39 ... 239.59 240.29 241.69]
  [262.99 262.19 261.39 ... 239.89 242.59 246.29]
  ...
  [293.79 293.69 295.09 ... 295.29 295.09 294.69]
  [296.09 296.89 297.19 ... 295.69 295.69 295.19]
  [297.69 298.09 298.09 ... 296.49 296.19 295.69]]]

3.2 Extracting data¶

How to extract data:

label-based indexing using .sel
position-based indexing using .isel

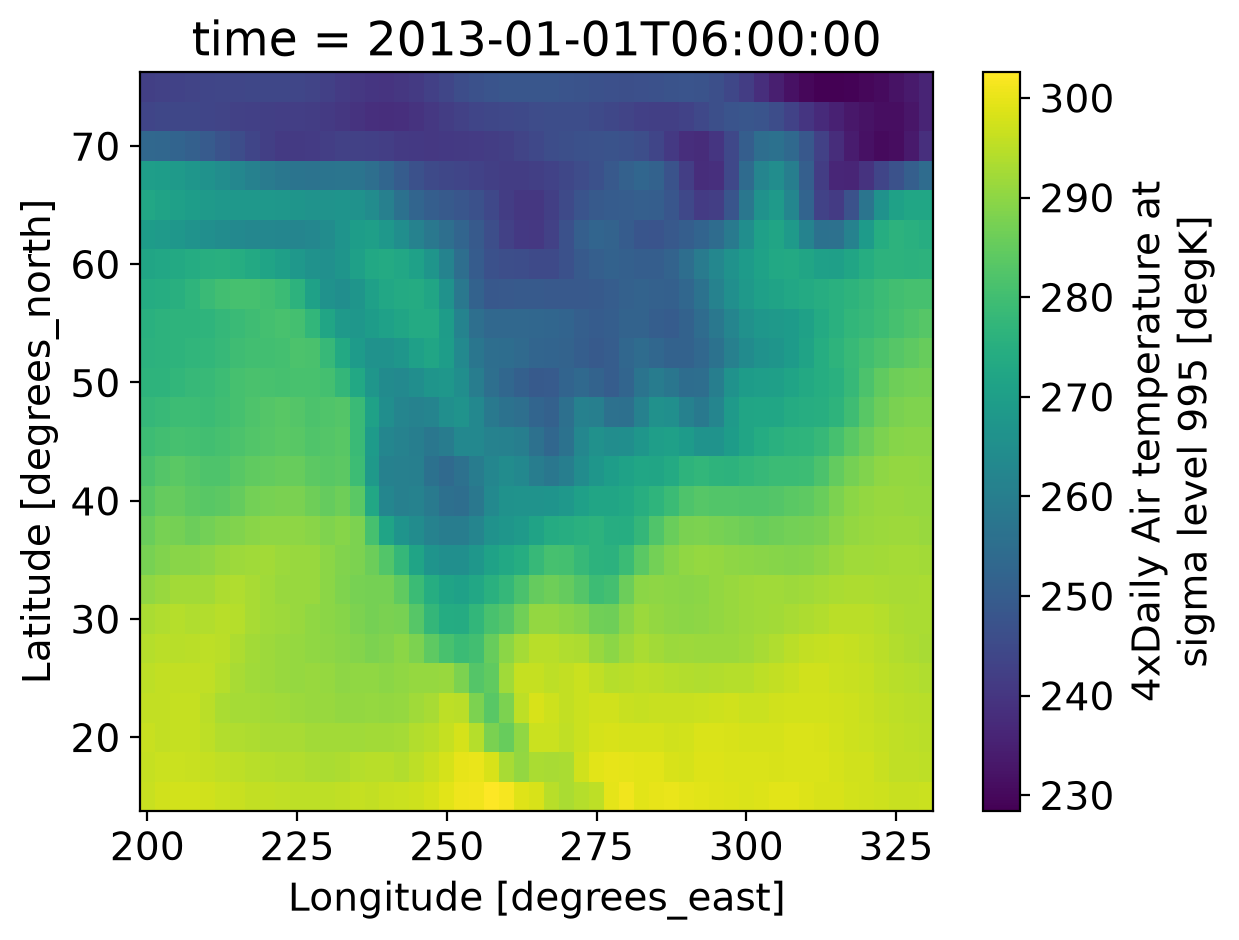

ds.air.isel(time=1).plot(x="lon")

You would notice that the air temperature is in Kelvin. We can convert it to Celsius by removing 273.15 and changing the attribute units.

Note the copy: ds2 = ds would only create a second name (an alias) for the same dataset in memory, so modifying ds2 would silently modify ds too; ds.copy(deep=True) makes an independent copy.

ds2 = ds.copy(deep=True)
ds2['air'] = ds2['air'] - 273.15
ds2['air'].attrs['units'] = 'degC'

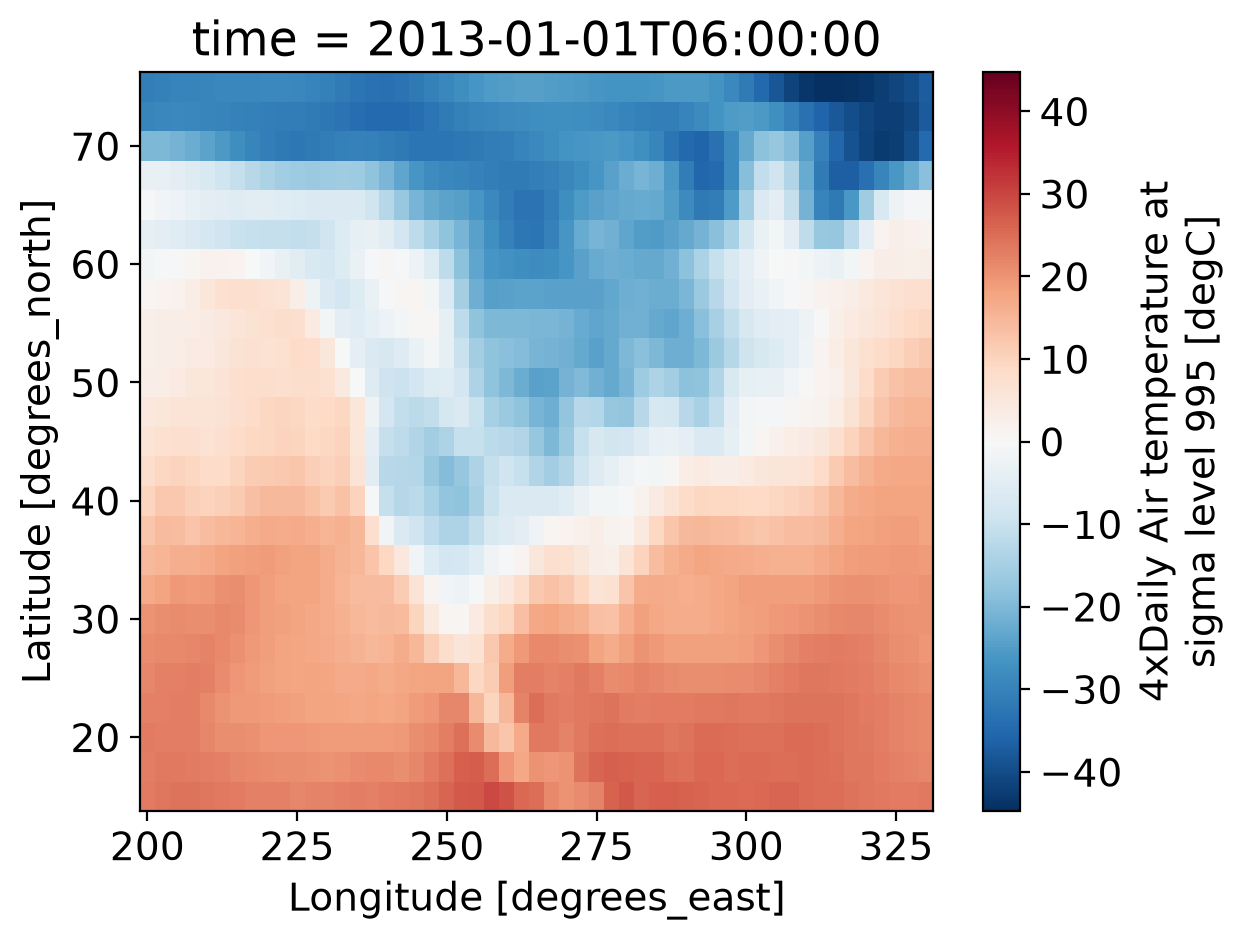

ds2.air.isel(time=1).plot(x="lon")

We also want to show the longitudes in the west direction by removing 360°.

ds2.coords["lon"]=ds2.coords["lon"]-360

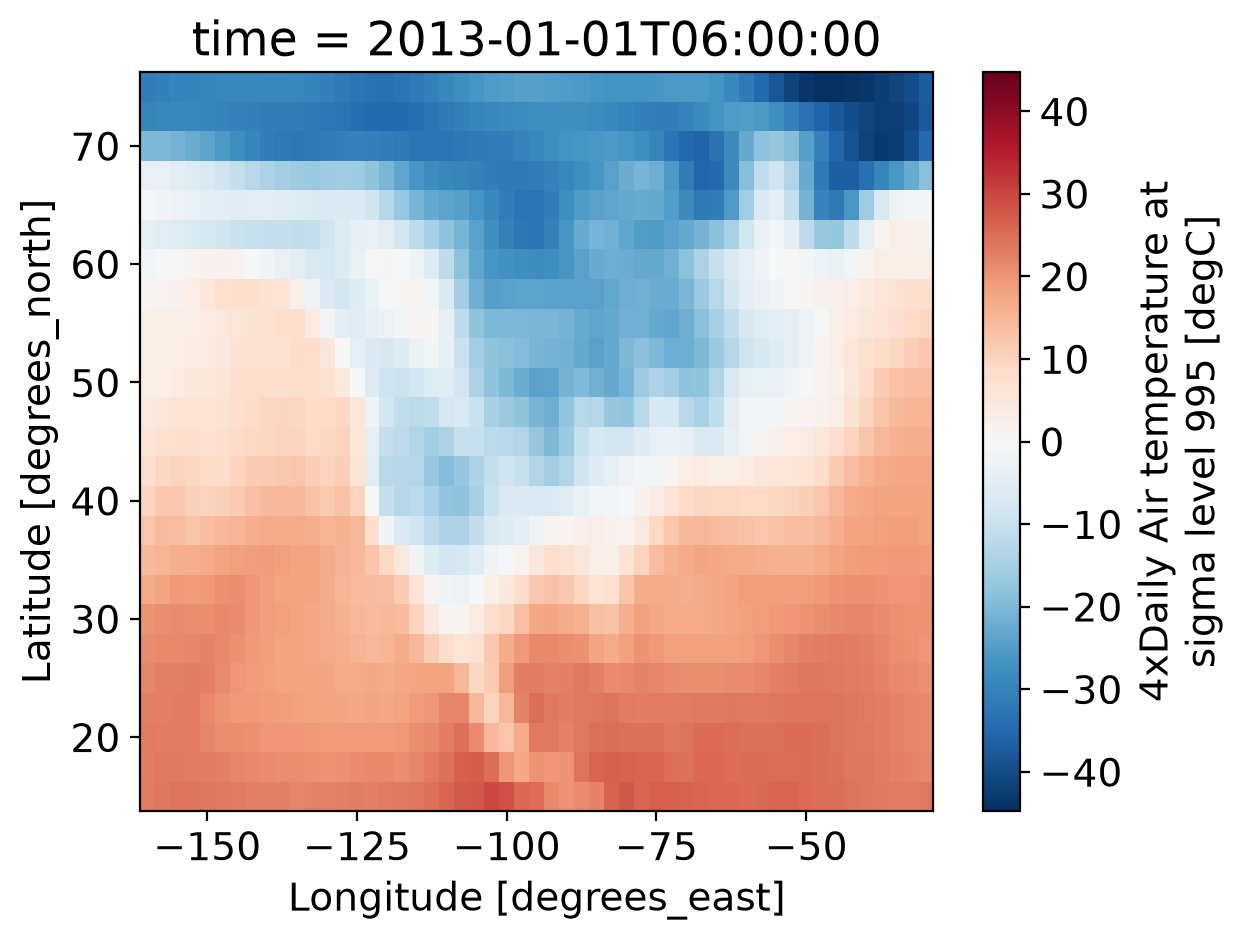

ds2.air.isel(time=1).plot(x="lon")

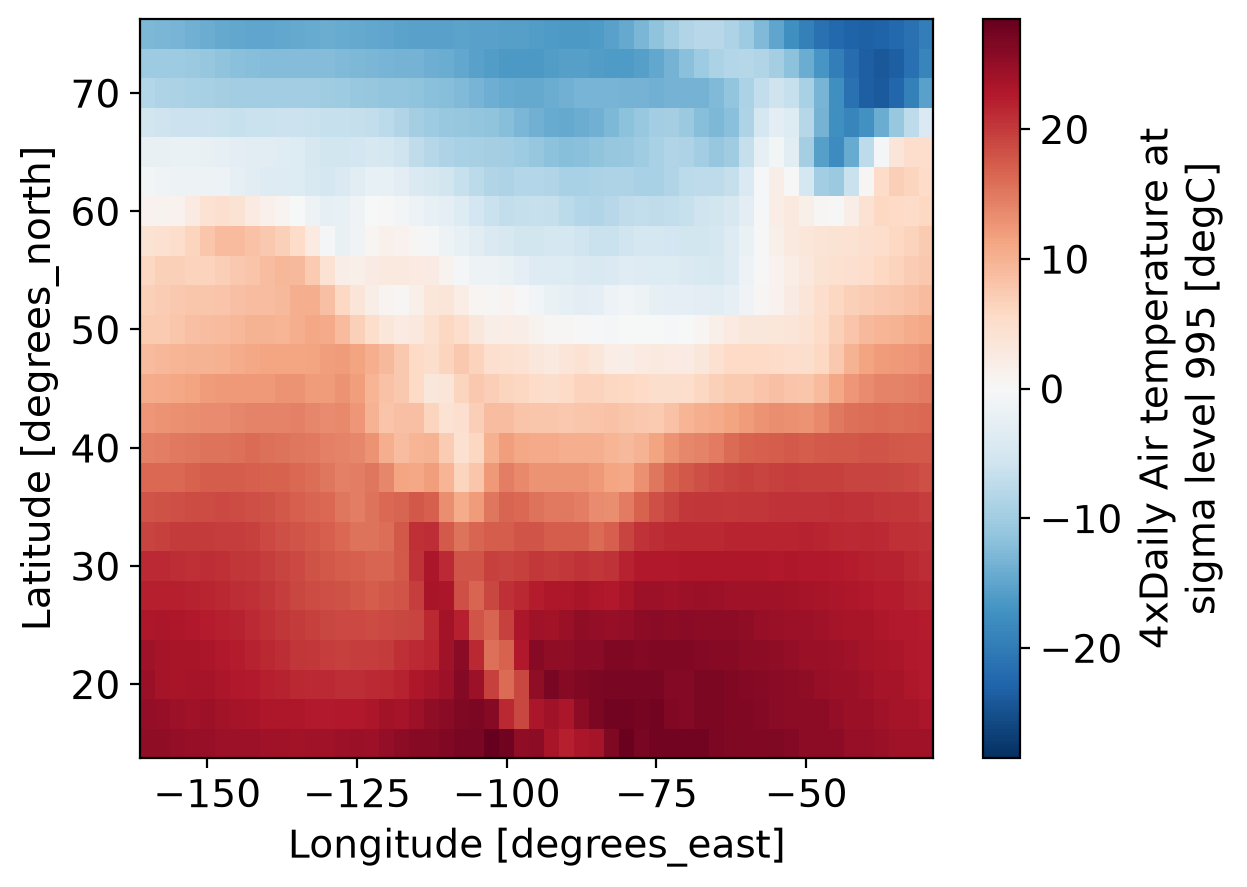

Show the mean temperature

ds2.air.mean("time").plot()

ds2.sel(time="2013-05")

# demonstrate slicing
ds.sel(time=slice("2013-05", "2013-07"))

# "nearest indexing at multiple points" (ds2 has the shifted longitudes)
ds2.sel(lon=[240.125-360, 234-360], lat=[40.3, 50.3], method="nearest")

3.3 High level computation¶

groupby : Bin data in to groups and reduce
resample : Groupby specialized for time axes. Either downsample or upsample your data.
rolling : Operate on rolling windows of your data e.g. running mean
coarsen : Downsample your data
weighted : Weight your data before reducing

# seasonal groups
ds.groupby("time.season")

<DatasetGroupBy, grouped over 1 grouper(s), 4 groups in total:
    'season': UniqueGrouper('season'), 4/4 groups with labels 'DJF', 'JJA', 'MAM', 'SON'>

# make a seasonal mean
seasonal_mean = ds.groupby("time.season").mean()
seasonal_mean = seasonal_mean.sel(season=["DJF", "MAM", "JJA", "SON"])
seasonal_mean

# resample to monthly frequency ("ME" = month end)
ds.resample(time="ME").mean()

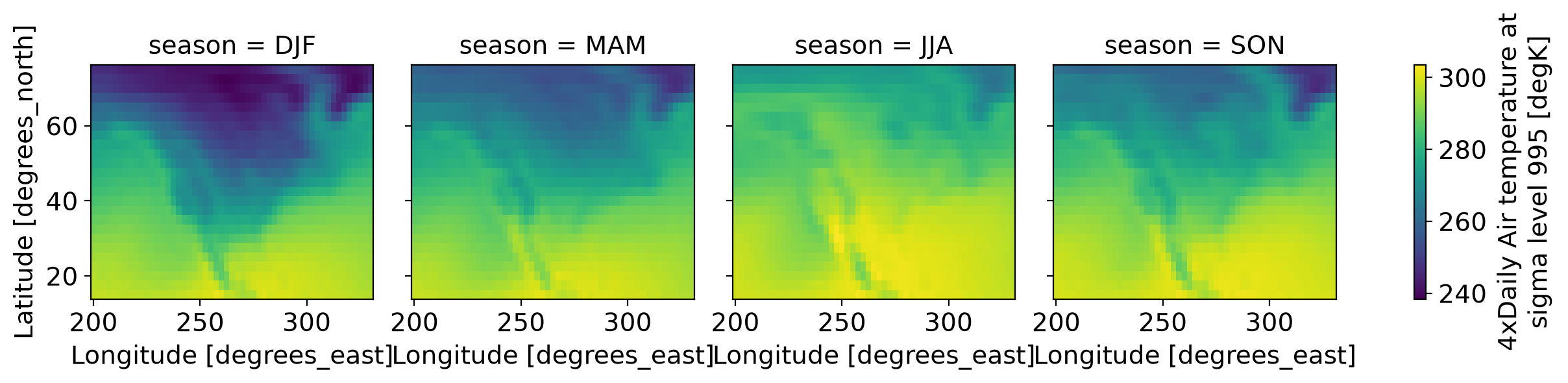

# facet the seasonal_mean
seasonal_mean.air.plot(col="season")

<xarray.plot.facetgrid.FacetGrid at 0x7f8012cde150>

We can save Xarrays in to NetCDF and Zarr files

# write to netCDF
%timeit ds.to_netcdf("my-example-dataset.nc")
!ls -lh my-example-dataset.nc

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/IPython/core/magics/execution.py:172: SerializationWarning: saving variable air with floating point data as an integer dtype without any _FillValue to use for NaNs
  timing = self.inner(it, self.timer)

22.7 ms ± 199 μs per loop (mean ± std. dev. of 7 runs, 10 loops each)
-rw-r--r-- 1 runner runner 7.5M Oct  2 21:13 my-example-dataset.nc


%timeit ds.to_zarr(store="./my-example-dataset.zarr",mode="w")
!du -sh ./my-example-dataset.zarr

<magic-timeit>:1: SerializationWarning: saving variable None with floating point data as an integer dtype without any _FillValue to use for NaNs
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/zarr/api/asynchronous.py:246: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
  warnings.warn(
<magic-timeit>:1: SerializationWarning: saving variable None with floating point data as an integer dtype without any _FillValue to use for NaNs
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/zarr/api/asynchronous.py:246: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
  warnings.warn(
<magic-timeit>:1: SerializationWarning: saving variable None with floating point data as an integer dtype without any _FillValue to use for NaNs

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/zarr/api/asynchronous.py:246: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
  warnings.warn(
<magic-timeit>:1: SerializationWarning: saving variable None with floating point data as an integer dtype without any _FillValue to use for NaNs
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/zarr/api/asynchronous.py:246: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
  warnings.warn(
<magic-timeit>:1: SerializationWarning: saving variable None with floating point data as an integer dtype without any _FillValue to use for NaNs
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/zarr/api/asynchronous.py:246: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
  warnings.warn(
<magic-timeit>:1: SerializationWarning: saving variable None with floating point data as an integer dtype without any _FillValue to use for NaNs

/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/zarr/api/asynchronous.py:246: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
  warnings.warn(
<magic-timeit>:1: SerializationWarning: saving variable None with floating point data as an integer dtype without any _FillValue to use for NaNs
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/zarr/api/asynchronous.py:246: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
  warnings.warn(
<magic-timeit>:1: SerializationWarning: saving variable None with floating point data as an integer dtype without any _FillValue to use for NaNs
/home/runner/work/mlgeo-book/mlgeo-book/.pixi/envs/default/lib/python3.12/site-packages/zarr/api/asynchronous.py:246: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
  warnings.warn(

74.7 ms ± 1.63 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)
4.9M	./my-example-dataset.zarr

3.4 Student exercise¶

Retrieve Air Temperature Data:

Use the air temperature data set and extract the time series at the latitude and longitude of Seattle.

Plot the Time Series:

Plot the time series of the air temperature data using matplotlib.

Fit a Sine Function:

Fit a sine function to the time series data using scipy.optimize.curve_fit.

# Latitude of Seattle
lat_seattle = 47.65

# Longitude of Seattle (the dataset stores longitude in degrees East, 0-360)
lon_seattle = 360 - 122.3

# extract the air temperature data at these latitude and longitude

# extract the time series, print its data type, and convert it to numerical values

# plot the data with appropriate labels and legends

# import the curve_fit function from scipy.optimize

# define a function to take the time series data and fit it to a sinusoidal function

4. Pytorch Tensors¶

This material is extracted from the Pytorch Package materials and from Dive into Deep Learning

The tensor class in Pytorch is similar to an ndarray in Numpy, with the added features that: 1) it has automatic differentiation and 2) it runs on CPUs and GPUs.

import torch

We can define a basic tensor that will be by default a 1-D array (vector) and run on the CPU

x = torch.arange(12, dtype=torch.float32)
x

tensor([ 0., 1., 2., 3., 4., 5., 6., 7., 8., 9., 10., 11.])

Each value is referred to as an element. We can extract the length of the vector using the method numel() (a method is applied with ()) and its attribute shape is found by applyingshape

x.numel()

12

x.shape

torch.Size([12])

We can reshape a tensor and flip dimensions

x.reshape(12,1).shape

torch.Size([12, 1])

x2=x.reshape(3,4)
x2.shape

torch.Size([3, 4])

We can create a random tensor

x3=torch.randn(3, 4)

We can apply element-wise operations on the tensor simply as methods. Here is an example by applying the function exp to all elements of the random tensor x3.

x3.exp()

tensor([[2.1779, 1.8659, 1.3020, 3.5141],
        [1.0139, 0.7671, 1.6973, 3.0047],
        [1.5545, 2.0200, 0.7704, 2.8601]])

We can manipulate 2 arrays of the same shape

x = torch.tensor([1.0, 2, 4, 8])
y = torch.tensor([2, 2, 2, 2])
x + y, x - y, x * y, x / y, x ** y

(tensor([ 3.,  4.,  6., 10.]),
 tensor([-1.,  0.,  2.,  6.]),
 tensor([ 2.,  4.,  8., 16.]),
 tensor([0.5000, 1.0000, 2.0000, 4.0000]),
 tensor([ 1.,  4., 16., 64.]))

We can normalize the tensor with its L2 norm. Try below

x = x / torch.linalg.norm(x)

tensor([0.1085, 0.2169, 0.4339, 0.8677])

We can convert a PyTorch tensor to a numpy array

a=x.numpy()
print(type(a))
print(type(x))

<class 'numpy.ndarray'>
<class 'torch.Tensor'>

Tensors live on a device: the CPU, an NVIDIA GPU (cuda), or the GPU of Apple Silicon chips (mps). Device-agnostic code detects the best available accelerator once and uses it everywhere. On an Apple Silicon laptop this picks mps; on a machine with an NVIDIA card it picks cuda; otherwise it falls back to the CPU.

device = "cuda" if torch.cuda.is_available() else "mps" if torch.backends.mps.is_available() else "cpu"
device = torch.device(device)
print(device)

cpu

Below, we are going to perform a regression to write a sine function as a function

import torch
import math


dtype = torch.float
# reuse the device detected above (cuda, mps, or cpu)
print("running on", device)

# Create random input and output data
x = torch.linspace(-math.pi, math.pi, 2000, device=device, dtype=dtype)
y = torch.sin(x)

# Randomly initialize weights
a = torch.randn((), device=device, dtype=dtype)
b = torch.randn((), device=device, dtype=dtype)
c = torch.randn((), device=device, dtype=dtype)
d = torch.randn((), device=device, dtype=dtype)

learning_rate = 1e-6
for t in range(2000):
    # Forward pass: compute predicted y
    y_pred = a + b * x + c * x ** 2 + d * x ** 3

    # Compute and print loss
    loss = (y_pred - y).pow(2).sum().item()
    if t % 100 == 99:
        print(t, loss)

    # Backprop to compute gradients of a, b, c, d with respect to loss
    grad_y_pred = 2.0 * (y_pred - y)
    grad_a = grad_y_pred.sum()
    grad_b = (grad_y_pred * x).sum()
    grad_c = (grad_y_pred * x ** 2).sum()
    grad_d = (grad_y_pred * x ** 3).sum()

    # Update weights using gradient descent
    a -= learning_rate * grad_a
    b -= learning_rate * grad_b
    c -= learning_rate * grad_c
    d -= learning_rate * grad_d


print(f'Result: y = {a.item()} + {b.item()} x + {c.item()} x^2 + {d.item()} x^3')

running on cpu
99 647.5501708984375
199 452.322021484375
299 317.0484313964844
399 223.2241973876953
499 158.0870361328125
599 112.82479095458984
699 81.34481811523438
799 59.431610107421875
899 44.16515350341797
999 33.520809173583984
1099 26.093530654907227
1199 20.907079696655273
1299 17.282859802246094
1399 14.74859619140625
1499 12.975311279296875
1599 11.733736991882324
1699 10.863924980163574
1799 10.254220962524414
1899 9.826600074768066
1999 9.526535034179688
Result: y = 0.026749584823846817 + 0.8485659956932068 x + -0.004614749923348427 x^2 + -0.09216758608818054 x^3

5. Comparison of NumPy, Xarray, and PyTorch¶

Feature/Use Case	NumPy	Xarray	PyTorch
Basic Array Manipulation	Excellent	Good	Good
Labeled Dimensions	Limited	Excellent	Limited
Multi-dimensional Data Support	Excellent	Excellent	Excellent
Deep Learning Integration	Limited	Limited	Excellent
GPU Acceleration	None	None	Excellent
Geoscientific Data (climate, etc.)	Possible but requires effort	Excellent	Possible

Choosing the Right Tool for the Task¶

NumPy: Best for basic numerical operations and standard array manipulation.
Xarray: Ideal for labeled, multi-dimensional geoscientific datasets, particularly in climate modeling, remote sensing, and spatial data.
PyTorch: Best when applying machine learning or deep learning models to geoscientific data, especially when dealing with large datasets and requiring GPU acceleration.

Array Conversions¶

Task:

Convert the xarray of air temperature into a 3D numpy and a 3D pytorch array
systematically print the dimensions
