A linear model cannot fit every dataset. We introduce nonlinearity by stacking hidden layers of neurons between the input and the output.
An MLP with one fully connected hidden layer: 4 inputs, 5 hidden units, 3 outputs.
A fully connected or dense layer connects every neuron to every neuron of the previous layer. Its output is
,
where ϕ is the activation function, the weight matrix, the bias vector, and the input vector. Training an MLP means finding the weights and biases that minimize a loss function. With enough hidden units, an MLP can approximate a wide class of functions, which is why MLPs are called universal approximators.
In this notebook we build a multi-class MLP in PyTorch on the seismic-source dataset from notebook 4.1, add dropout and batch normalization, learn to save and restore models, and compare with scikit-learn’s built-in MLP.
1. Activation Functions¶
Activation functions apply a nonlinear transformation to the weighted sum of a neuron’s inputs. Without them, a stack of linear layers collapses to a single linear layer. Three common choices:
- Rectified linear unit (ReLU): . Its derivative is either 0 or 1, which keeps optimization well behaved. ReLU is the default choice for hidden layers.
- Sigmoid: maps any real number to (0, 1). It is a smooth, “S-shaped” approximation of a thresholding unit. It is still used on output units when the output should be a probability in binary classification.
- Tanh: maps to (-1, 1) and is close to linear near zero. It sits between the sigmoid and ReLU in behavior.
import numpy as np
import matplotlib.pyplot as plt
x = np.linspace(-2, 2, 100)
def sigm(x): # sigmoid
return 1 / (1 + np.exp(-x))
def relu(x): # rectified linear unit
return np.maximum(x, 0)

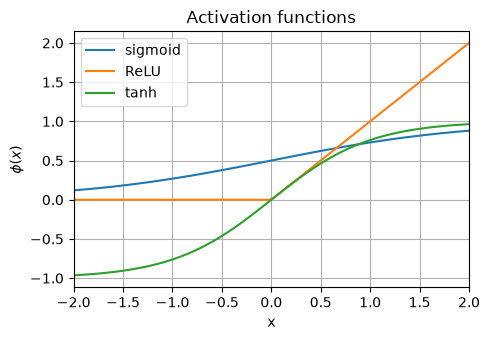

fig, ax = plt.subplots(figsize=(5, 3.5))
ax.plot(x, sigm(x), label='sigmoid')
ax.plot(x, relu(x), label='ReLU')
ax.plot(x, np.tanh(x), label='tanh')
ax.grid(True)
ax.legend()
ax.set_xlim([-2, 2])
ax.set_xlabel('x')
ax.set_ylabel(r'$\phi(x)$')
ax.set_title('Activation functions')
plt.tight_layout()
2. Typical MLP Structures¶

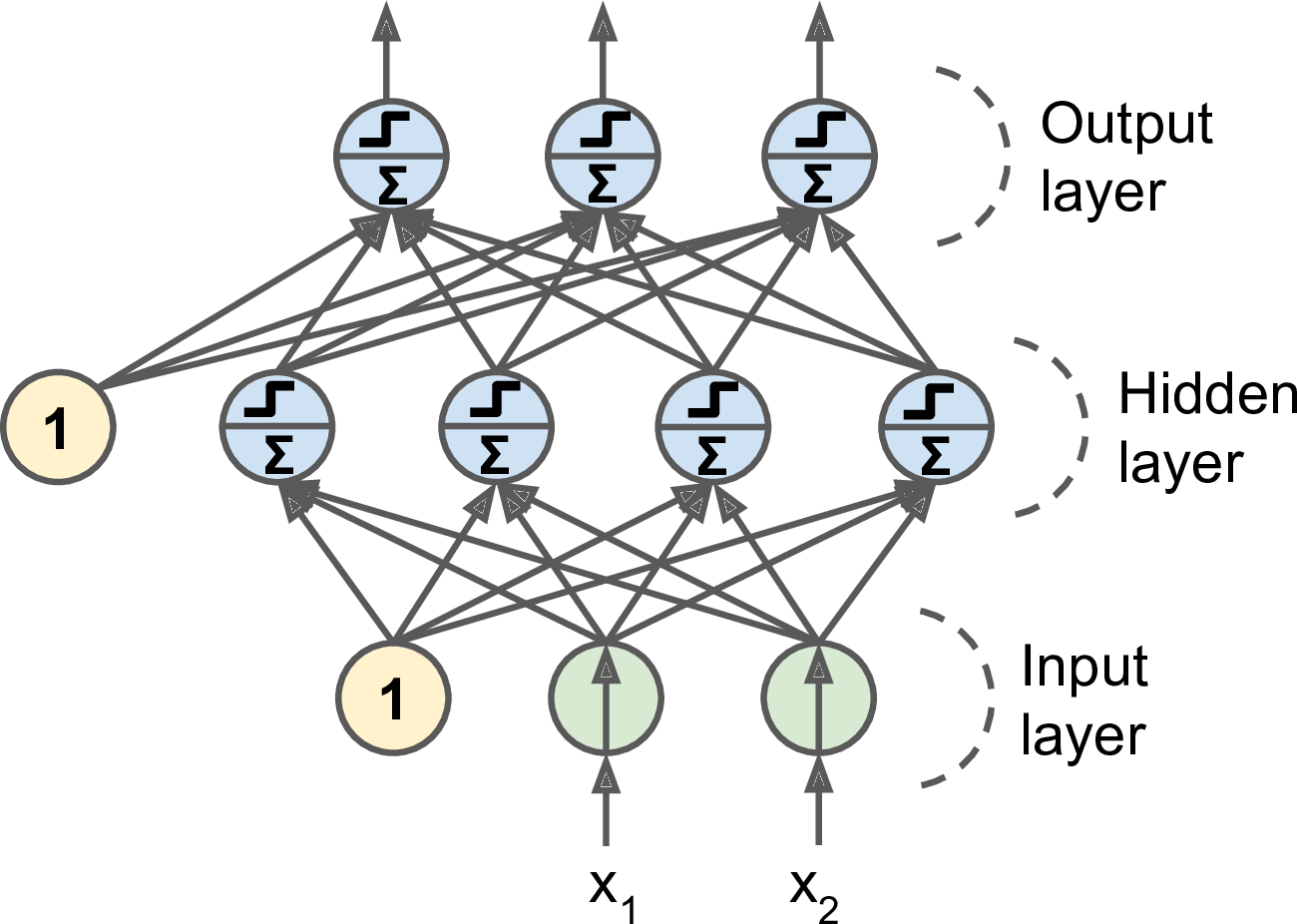

A regression MLP outputs scalar values. The number of output neurons equals the number of predicted values. To predict 2D geospatial coordinates, for example, you need 2 output neurons: latitude and longitude. For unbounded real outputs, the output layer has no activation. To constrain outputs, add an activation on the output layer: ReLU or softplus for strictly positive values, sigmoid or tanh for values bounded between 0 (or -1) and 1.

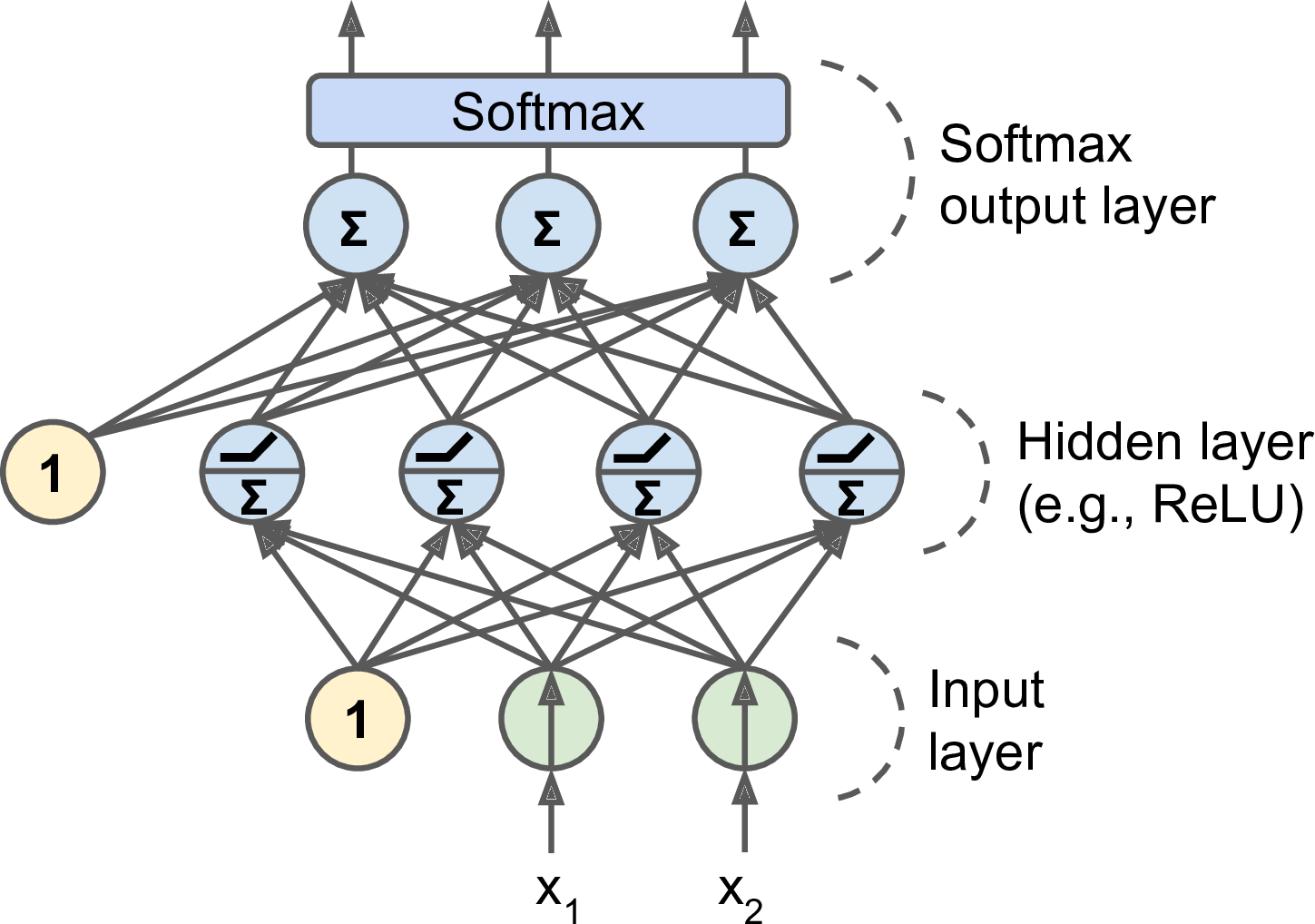

A classification MLP outputs one score per class. For binary problems, a single output neuron with a sigmoid gives the probability of the positive class. For multi-class problems, the output layer has one neuron per class and a softmax converts the scores into probabilities that sum to 1. In PyTorch, the model usually outputs the raw scores (called logits) and the loss function nn.CrossEntropyLoss applies the softmax internally.
3. Training Neural Networks¶
Training proceeds on small batches of data called minibatches.
The forward pass sends a minibatch from the input layer through the hidden layers to the output layer, computing and storing intermediate values along the way, and produces predictions.
The algorithm then measures the error with a loss function.
Backpropagation applies the chain rule backward through the network to compute the gradient of the loss with respect to every weight and bias. Because the chain rule needs the intermediate values from the forward pass, training requires more memory than prediction.
Finally, the optimizer (gradient descent or a variant such as Adam) updates the weights using these gradients. One pass through the full training set is called an epoch. Repeating this loop for many epochs gradually reduces the loss.
A sequential model is a single-branch MLP: data flows through the layers one after the other.
4. A Multi-Class MLP in PyTorch¶
We reuse the seismic-source dataset from notebook 4.1: 62 physical features extracted from seismograms of four source types (earthquakes, explosions, noise, surface events), 1000 events per class, from a Zenodo archive. As in 4.1, one all-NaN feature column is dropped during cleaning, leaving 61. In 4.1 we trained a shallow MLP. Here we build a deeper one with three hidden layers, dropout, and batch normalization.
import os
import pandas as pd
import pooch
import torch
import torch.nn as nn
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from sklearn.metrics import accuracy_score, classification_report
# device-agnostic setup: GPU if available, else Apple silicon, else CPU
device = torch.device("cuda" if torch.cuda.is_available()
else "mps" if torch.backends.mps.is_available()
else "cpu")
print(f"Using device: {device}")
torch.manual_seed(42)
np.random.seed(42)Using device: cpu
4.1 Load and clean the data¶
We download the four CSV files (one per source type) with pooch, concatenate them, and create an integer label from the class name. We drop the bookkeeping columns, drop one feature column that is entirely NaN, and remove any remaining rows with NaN or infinite values.
base = "https://zenodo.org/api/records/14025693/files"
class_files = {"earthquake": "1000_earthquakes_physical_features.csv",
"explosion": "1000_explosion_physical_features.csv",
"noise": "1000_noise_physical_features.csv",
"surface event": "1000_surface_physical_features.csv"}
frames = []
for class_name, fname in class_files.items():
path = pooch.retrieve(f"{base}/{fname}/content", known_hash=None, fname=fname)
d = pd.read_csv(path)
d["label"] = class_name
frames.append(d)
df = pd.concat(frames, ignore_index=True)
# drop bookkeeping columns
df = df.drop(columns=["Unnamed: 0", "serial_no", "source"])
# clean: replace inf with NaN, drop all-NaN columns, then drop rows with NaN
df = df.replace([np.inf, -np.inf], np.nan)
df = df.dropna(axis=1, how="all").dropna()
class_names = list(class_files.keys())
y = df["label"].map({name: i for i, name in enumerate(class_names)}).to_numpy()
X = df.drop(columns=["label"]).to_numpy(dtype=np.float32)
print(f"{X.shape[0]} samples, {X.shape[1]} features, {len(class_names)} classes")4000 samples, 61 features, 4 classes
4.2 Split and scale¶
We hold out 20% of the data for the final test, and split the rest into training and validation sets. The validation set monitors overfitting during training; the test set is touched only once at the end. We standardize the features with StandardScaler fit on the training set only, so no information from the validation or test sets leaks into the preprocessing.
X_trainval, X_test, y_trainval, y_test = train_test_split(
X, y, test_size=0.2, random_state=42, stratify=y)
X_train, X_val, y_train, y_val = train_test_split(
X_trainval, y_trainval, test_size=0.2, random_state=42, stratify=y_trainval)
scaler = StandardScaler().fit(X_train) # fit on train only
X_train = scaler.transform(X_train).astype(np.float32)
X_val = scaler.transform(X_val).astype(np.float32)
X_test = scaler.transform(X_test).astype(np.float32)
print(f"train: {len(X_train)}, validation: {len(X_val)}, test: {len(X_test)}")train: 2560, validation: 640, test: 800
4.3 Datasets and DataLoaders¶
PyTorch feeds data to the model through a Dataset (indexable storage of samples) and a DataLoader (batching and shuffling). Our arrays are already tensors-to-be, so TensorDataset is enough. We shuffle the training batches each epoch; the validation and test loaders do not need shuffling.
from torch.utils.data import TensorDataset, DataLoader
batch_size = 64
train_ds = TensorDataset(torch.from_numpy(X_train), torch.from_numpy(y_train))
val_ds = TensorDataset(torch.from_numpy(X_val), torch.from_numpy(y_val))
test_ds = TensorDataset(torch.from_numpy(X_test), torch.from_numpy(y_test))
train_loader = DataLoader(train_ds, batch_size=batch_size, shuffle=True)
val_loader = DataLoader(val_ds, batch_size=batch_size)
test_loader = DataLoader(test_ds, batch_size=batch_size)4.4 A deeper MLP with dropout and batch normalization¶
The model has three hidden layers (128, 64, 32 units) instead of the single hidden layer of 4.1. Two new layer types appear:
Dropout (nn.Dropout(p)) randomly zeroes a fraction p of the activations at each training step and rescales the survivors by . Because a neuron cannot rely on any particular other neuron being present, the network learns more redundant, general features, which reduces overfitting. Dropout is active only in training mode and is turned off at evaluation time.
Batch normalization (nn.BatchNorm1d) normalizes each unit’s activations to zero mean and unit variance over the current minibatch, then applies a learned scale and shift. This keeps the activations in a stable range as the weights change, which stabilizes and speeds up training. At evaluation time it uses running estimates of the mean and variance collected during training.
Both layers behave differently in training and evaluation. Call model.train() before training and model.eval() before prediction to switch modes. The output layer returns raw logits; nn.CrossEntropyLoss will handle the softmax.
class SourceMLP(nn.Module):
def __init__(self, n_features, n_classes, p_drop=0.3):
super().__init__()
self.net = nn.Sequential(
nn.Linear(n_features, 128),
nn.BatchNorm1d(128),
nn.ReLU(),
nn.Dropout(p_drop),
nn.Linear(128, 64),
nn.BatchNorm1d(64),
nn.ReLU(),
nn.Dropout(p_drop),
nn.Linear(64, 32),
nn.BatchNorm1d(32),
nn.ReLU(),
nn.Linear(32, n_classes), # logits, no activation
)
def forward(self, x):
return self.net(x)
n_features, n_classes = X_train.shape[1], len(class_names)
model = SourceMLP(n_features, n_classes).to(device)
print(model)SourceMLP(
(net): Sequential(
(0): Linear(in_features=61, out_features=128, bias=True)
(1): BatchNorm1d(128, eps=1e-05, momentum=0.1, affine=True, bias=True, track_running_stats=True)
(2): ReLU()
(3): Dropout(p=0.3, inplace=False)
(4): Linear(in_features=128, out_features=64, bias=True)
(5): BatchNorm1d(64, eps=1e-05, momentum=0.1, affine=True, bias=True, track_running_stats=True)
(6): ReLU()
(7): Dropout(p=0.3, inplace=False)
(8): Linear(in_features=64, out_features=32, bias=True)
(9): BatchNorm1d(32, eps=1e-05, momentum=0.1, affine=True, bias=True, track_running_stats=True)
(10): ReLU()
(11): Linear(in_features=32, out_features=4, bias=True)
)
)
4.5 Training with minibatches and Adam¶
The training loop below follows the recipe of section 3: forward pass, loss, backpropagation, weight update, one minibatch at a time. We use the Adam optimizer, a variant of gradient descent with per-parameter adaptive learning rates (see the list of optimizers at https://
The loop also saves a checkpoint each time the validation loss improves. We come back to checkpoints in section 5; for now, note the torch.save call. Checkpoints go in a local checkpoints/ directory.
We train for 40 epochs, which is enough for this small model. You can raise the number of epochs on your own machine.
def evaluate(model, loader, criterion):
"""Average loss and accuracy of the model over a DataLoader."""
model.eval() # evaluation mode: dropout off, batchnorm uses running stats
total_loss, correct, n = 0.0, 0, 0
with torch.no_grad(): # no gradients needed for evaluation
for xb, yb in loader:
xb, yb = xb.to(device), yb.to(device)
logits = model(xb)
total_loss += criterion(logits, yb).item() * len(yb)
correct += (logits.argmax(dim=1) == yb).sum().item()
n += len(yb)
return total_loss / n, correct / n
def train(model, train_loader, val_loader, n_epochs=40, lr=1e-3,
ckpt_path="checkpoints/best_mlp.pt"):
os.makedirs("checkpoints", exist_ok=True)
criterion = nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(model.parameters(), lr=lr)
history = {"train_loss": [], "val_loss": [], "train_acc": [], "val_acc": []}
best_val_loss = float("inf")
for epoch in range(n_epochs):
model.train() # training mode: dropout and batchnorm active
running_loss, correct, n = 0.0, 0, 0
for xb, yb in train_loader:
xb, yb = xb.to(device), yb.to(device)
optimizer.zero_grad() # reset gradients
logits = model(xb) # forward pass
loss = criterion(logits, yb) # loss
loss.backward() # backpropagation
optimizer.step() # weight update
running_loss += loss.item() * len(yb)
correct += (logits.argmax(dim=1) == yb).sum().item()
n += len(yb)
history["train_loss"].append(running_loss / n)
history["train_acc"].append(correct / n)
val_loss, val_acc = evaluate(model, val_loader, criterion)
history["val_loss"].append(val_loss)
history["val_acc"].append(val_acc)
# checkpoint: save the model each time the validation loss improves
if val_loss < best_val_loss:
best_val_loss = val_loss
torch.save({"epoch": epoch + 1,
"state_dict": model.state_dict(),
"optimizer": optimizer.state_dict(),
"val_loss": val_loss}, ckpt_path)
if (epoch + 1) % 5 == 0 or epoch == 0:
print(f"[Epoch {epoch + 1:2d}] train loss: {history['train_loss'][-1]:.3f} "
f"- val loss: {val_loss:.3f} - val accuracy: {val_acc:.3f}")
return historyhistory = train(model, train_loader, val_loader, n_epochs=40)[Epoch 1] train loss: 1.031 - val loss: 0.729 - val accuracy: 0.798
[Epoch 5] train loss: 0.445 - val loss: 0.397 - val accuracy: 0.872
[Epoch 10] train loss: 0.352 - val loss: 0.348 - val accuracy: 0.886
[Epoch 15] train loss: 0.315 - val loss: 0.342 - val accuracy: 0.902
[Epoch 20] train loss: 0.286 - val loss: 0.324 - val accuracy: 0.903
[Epoch 25] train loss: 0.278 - val loss: 0.333 - val accuracy: 0.908
[Epoch 30] train loss: 0.243 - val loss: 0.335 - val accuracy: 0.897
[Epoch 35] train loss: 0.221 - val loss: 0.310 - val accuracy: 0.908
[Epoch 40] train loss: 0.223 - val loss: 0.311 - val accuracy: 0.897
4.6 Learning curves¶

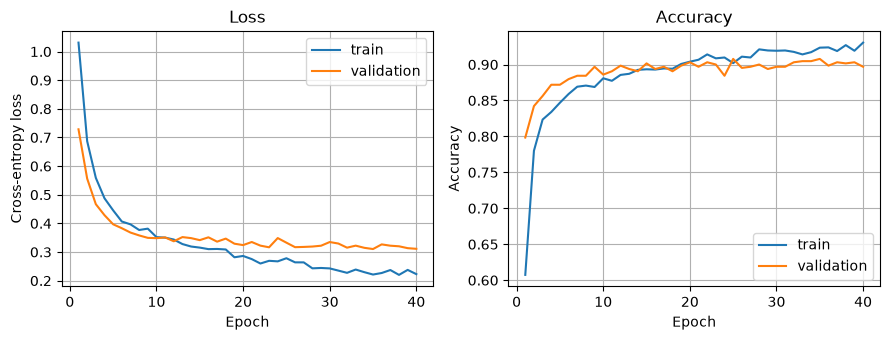

We plot the training and validation loss side by side with the accuracies. The gap between the two curves is a direct read on overfitting: a training loss that keeps dropping while the validation loss stalls or rises means the model is memorizing the training set.
epochs = np.arange(1, len(history["train_loss"]) + 1)
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(9, 3.5))
ax1.plot(epochs, history["train_loss"], label="train")
ax1.plot(epochs, history["val_loss"], label="validation")
ax1.set_xlabel("Epoch")
ax1.set_ylabel("Cross-entropy loss")
ax1.set_title("Loss")
ax1.legend()
ax1.grid(True)
ax2.plot(epochs, history["train_acc"], label="train")
ax2.plot(epochs, history["val_acc"], label="validation")
ax2.set_xlabel("Epoch")
ax2.set_ylabel("Accuracy")
ax2.set_title("Accuracy")
ax2.legend()
ax2.grid(True)
plt.tight_layout()
4.7 Test performance¶
We now evaluate once on the held-out test set: overall accuracy and per-class precision, recall, and F1 score.
def predict(model, loader):
model.eval()
preds = []
with torch.no_grad():
for xb, _ in loader:
logits = model(xb.to(device))
preds.append(logits.argmax(dim=1).cpu().numpy())
return np.concatenate(preds)
y_pred = predict(model, test_loader)
print(f"Test accuracy: {accuracy_score(y_test, y_pred):.3f}\n")
print(classification_report(y_test, y_pred, target_names=class_names))Test accuracy: 0.889
precision recall f1-score support
earthquake 0.91 0.86 0.88 200
explosion 0.83 0.85 0.84 200
noise 0.92 0.93 0.92 200
surface event 0.90 0.92 0.91 200
accuracy 0.89 800
macro avg 0.89 0.89 0.89 800
weighted avg 0.89 0.89 0.89 800
Exercise: rebuild the model with p_drop=0.0 and retrain. How does the gap between the training and validation curves change?
Solution
Run model_nodrop = SourceMLP(n_features, n_classes, p_drop=0.0).to(device) and call train on it. Without dropout, the training loss drops faster and further, and the training accuracy climbs higher, but the validation curves stall earlier: the gap between the two widens. That widening gap is overfitting, which dropout was suppressing.
5. Saving and Restoring a Model¶
5.1 Saving weights with state_dict¶
A PyTorch model’s learnable parameters live in its state_dict, a dictionary that maps each layer to its weight and bias tensors. The standard way to save a trained model is to save this dictionary, not the model object itself:
torch.save(model.state_dict(), path)writes the weights to disk.- To restore, build a fresh instance of the same model class and call
load_state_dict. - Call
model.eval()before prediction, so dropout is off and batchnorm uses its running statistics.
Loading with map_location=device makes the file portable across machines: weights saved on a GPU load fine on a CPU-only machine.
os.makedirs("checkpoints", exist_ok=True)
torch.save(model.state_dict(), "checkpoints/mlp_weights.pt")
# restore into a fresh model instance
restored = SourceMLP(n_features, n_classes).to(device)
restored.load_state_dict(torch.load("checkpoints/mlp_weights.pt", map_location=device))
restored.eval()
# check that the restored model gives the same predictions
y_pred_restored = predict(restored, test_loader)
print(f"Restored predictions identical: {np.array_equal(y_pred, y_pred_restored)}")Restored predictions identical: True
5.2 Checkpointing during training¶
Saving only the final weights has a flaw: the last epoch is not always the best one. If the model starts to overfit, the validation loss rises while training continues, and the final weights are worse than an earlier version. Checkpointing fixes this: during training we saved the model every time the validation loss improved (section 4.5), together with the epoch number and the optimizer state. The optimizer state lets you resume training exactly where the checkpoint was taken.
We now restore the best checkpoint and evaluate it on the test set.
ckpt = torch.load("checkpoints/best_mlp.pt", map_location=device)
print(f"Best checkpoint: epoch {ckpt['epoch']}, validation loss {ckpt['val_loss']:.3f}")
best_model = SourceMLP(n_features, n_classes).to(device)
best_model.load_state_dict(ckpt["state_dict"])
best_model.eval()
y_pred_best = predict(best_model, test_loader)
print(f"Test accuracy (final model): {accuracy_score(y_test, y_pred):.3f}")
print(f"Test accuracy (best checkpoint): {accuracy_score(y_test, y_pred_best):.3f}\n")
print(classification_report(y_test, y_pred_best, target_names=class_names))Best checkpoint: epoch 35, validation loss 0.310
Test accuracy (final model): 0.889
Test accuracy (best checkpoint): 0.890
precision recall f1-score support
earthquake 0.92 0.85 0.88 200
explosion 0.83 0.85 0.84 200
noise 0.91 0.94 0.92 200
surface event 0.91 0.93 0.92 200
accuracy 0.89 800
macro avg 0.89 0.89 0.89 800
weighted avg 0.89 0.89 0.89 800
6. MLP in scikit-learn¶
Scikit-learn ships its own MLP, MLPClassifier (and MLPRegressor). It is the same model family: fully connected layers, ReLU activations, minibatch training with Adam. The trade-off is control. You give up the custom training loop, dropout, batch normalization, checkpointing, and GPU execution, and in exchange the whole workflow is a few lines that fit the familiar fit/predict interface. For small tabular problems this is often all you need.
We demonstrate on the synthetic event-detector features from mlgeo_synth: 4 waveform-derived features (STA/LTA, kurtosis, spectral centroid, dominant frequency) and a balanced binary label (event vs. noise).
from mlgeo_synth import detector_features
from sklearn.neural_network import MLPClassifier
from sklearn.pipeline import make_pipeline
det = detector_features(n=2000, event_fraction=0.5, seed=0)
X_det = det.drop(columns=["label"]).to_numpy()
y_det = det["label"].to_numpy()
Xd_train, Xd_test, yd_train, yd_test = train_test_split(
X_det, y_det, test_size=0.2, random_state=42, stratify=y_det)
clf = make_pipeline(
StandardScaler(),
MLPClassifier(hidden_layer_sizes=(32, 16), max_iter=500, random_state=42))
clf.fit(Xd_train, yd_train)
print(f"Train accuracy: {clf.score(Xd_train, yd_train):.3f}")
print(f"Test accuracy: {clf.score(Xd_test, yd_test):.3f}")
print(classification_report(yd_test, clf.predict(Xd_test),
target_names=["noise", "event"]))Train accuracy: 0.991
Test accuracy: 0.985
precision recall f1-score support
noise 0.97 1.00 0.99 200
event 1.00 0.97 0.98 200
accuracy 0.98 400
macro avg 0.99 0.98 0.98 400
weighted avg 0.99 0.98 0.98 400
Two lines of model code, no training loop, and the pipeline handles the scaling. But the architecture choices stop at layer sizes, activation, and a handful of solver settings. When you need dropout, batch normalization, custom losses, or a GPU, you write the PyTorch version.
7. Summary¶
In this notebook you:
- reviewed activation functions and the structure of regression and classification MLPs,
- built a three-hidden-layer MLP with dropout and batch normalization in PyTorch and trained it with minibatches and Adam on the four-class seismic-source data,
- read overfitting off the train/validation learning curves,
- saved and restored models with
state_dict, and used checkpoints to keep the best version seen during training, - compared with scikit-learn’s
MLPClassifier.
We picked the layer sizes, dropout rate, and learning rate here by hand. Choosing them systematically, by searching over architectures and hyperparameters, is the subject of the lab in notebook 4.5.
