The perceptron is the building block of neural networks. It computes a weighted sum of its inputs, adds a bias, and passes the result through an activation function. In this notebook we:
- Build a perceptron from scratch with NumPy.
- Train it with the classic perceptron learning rule to separate seismic events from noise.
- Reuse the same perceptron as a linear regressor trained by gradient descent, and compare it to ordinary least squares (OLS).
- Study how the learning rate changes training.
import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression
import mlgeo_synth1. A perceptron from scratch¶
A perceptron with inputs , weights , and bias weight computes
where ϕ is the activation function. We implement three activations: none (identity), sigmoid, and step.
class simplePerceptron:
# Activation functions
def __none(x):
return x
def __sigmoid(x):
return 1 / (1 + np.exp(-x))
def __step(x):
out = np.zeros(x.shape)
out[x >= 0] = 1
return out
possibleActivations = {
'none': __none,
'sigmoid': __sigmoid,
'step': __step
}
# Initialize
def __init__(self, w=None, b_w=None, activation=None):
if w is None:
self.w = 0
else:
self.w = w
if b_w is None:
self.b_w = 0
else:
self.b_w = b_w
if (activation is None) or (activation not in self.possibleActivations):
self.activation = 'none'
else:
self.activation = activation
def setWs(self, w, b_w):
self.w = w
self.b_w = b_w
def predict(self, x):
# x should be an (m, n) array: each row is one observation
weightedSum = np.zeros(x.shape[0])
for i in range(len(self.w)):
weightedSum += self.w[i] * x[:, i]
summed = weightedSum + (1 * self.b_w)
return self.possibleActivations[self.activation](summed)1.1 Test the perceptron¶
With one weight set to 1, bias 0, and no activation, the perceptron should return its input unchanged.
ourPerceptron = simplePerceptron(w=[0], b_w=1, activation='none')
ourPerceptron.setWs([1], 0)
testInput = np.array([[100, -1, 0.1]]).T
ourPerceptron.predict(testInput)array([100. , -1. , 0.1])2. Classifying seismic detections¶
Seismic detectors summarize short windows of a seismogram with a few features. The mlgeo_synth.detector_features table contains four such features per window: the STA/LTA ratio (sta_lta), the kurtosis of the waveform, the spectral centroid in Hz, and the dominant frequency in Hz. The label is 1 for an earthquake window and 0 for a noise window, with balanced classes.
We use two features, sta_lta and spectral_centroid_hz. Events have impulsive arrivals (high STA/LTA) and more high-frequency energy (high spectral centroid) than background noise.
df = mlgeo_synth.detector_features(n=2000, event_fraction=0.5, seed=0)
print(df.head())

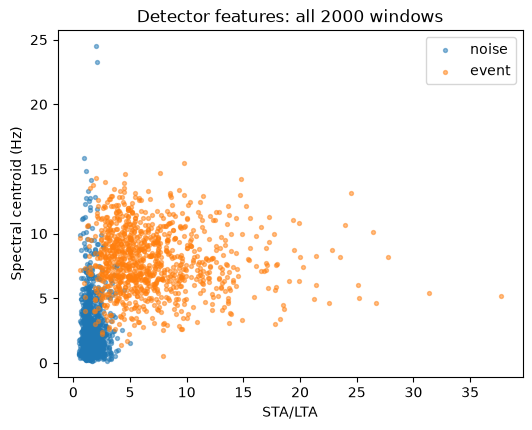

fig, ax = plt.subplots(figsize=(6, 4.5))
for lbl, name in [(0, 'noise'), (1, 'event')]:
part = df[df['label'] == lbl]
ax.scatter(part['sta_lta'], part['spectral_centroid_hz'], s=8, alpha=0.5, label=name)
ax.set_xlabel('STA/LTA')
ax.set_ylabel('Spectral centroid (Hz)')
ax.set_title('Detector features: all 2000 windows')
ax.legend(); sta_lta kurtosis spectral_centroid_hz dominant_freq_hz label
0 10.419133 22.113184 9.556484 7.786286 1
1 3.314406 2.773164 1.716694 1.009758 0
2 2.336543 4.639630 1.271397 0.251278 0
3 3.976867 13.591792 6.692700 4.682170 1
4 1.151811 3.131239 4.474578 1.426544 0
2.1 Why an easy two-feature slice?¶
The classic perceptron learning rule only converges when the data are linearly separable: some line must classify every training sample correctly. If the classes overlap, the rule keeps updating forever. The scatter above shows a small overlap band between the two clouds, so the full dataset is not linearly separable.
We therefore select a near-linearly-separable subset: we compute a simple combined score, sta_lta + spectral_centroid_hz, and drop the samples in the overlap band. We also stick to exactly two features so we can draw the decision boundary as a line in the plane. Real detector data is messier; later notebooks handle the overlap with multi-layer networks and gradient-based losses.
score = df['sta_lta'] + df['spectral_centroid_hz']
keep = ((df['label'] == 0) & (score < 5)) | ((df['label'] == 1) & (score > 9))
subset = df[keep]
# Balance the classes: 300 windows of each
rng = np.random.default_rng(42)
noise_idx = rng.choice(subset.index[subset['label'] == 0], 300, replace=False)
event_idx = rng.choice(subset.index[subset['label'] == 1], 300, replace=False)
subset = subset.loc[np.concatenate([noise_idx, event_idx])]
simpleInputs = subset[['sta_lta', 'spectral_centroid_hz']].to_numpy()
simpleOutputs = subset['label'].to_numpy()
# Shuffle the samples
p = rng.permutation(len(simpleInputs))
simpleInputs = simpleInputs[p, :]
simpleOutputs = simpleOutputs[p]

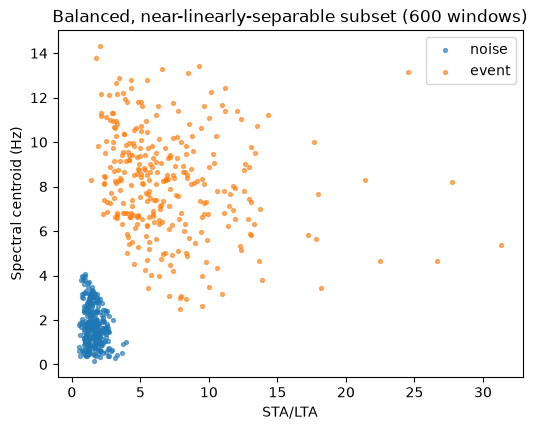

fig, ax = plt.subplots(figsize=(6, 4.5))
for lbl, name in [(0, 'noise'), (1, 'event')]:
m = simpleOutputs == lbl
ax.scatter(simpleInputs[m, 0], simpleInputs[m, 1], s=8, alpha=0.6, label=name)
ax.set_xlabel('STA/LTA')
ax.set_ylabel('Spectral centroid (Hz)')
ax.set_title('Balanced, near-linearly-separable subset (600 windows)')
ax.legend();
2.2 The perceptron learning rule¶
We start with all weights set to 0 and use the step activation, so the perceptron outputs 0 or 1. We then sweep through the dataset. For each sample we:
Make a prediction with the current weights.
Update each weight with the rule
, where
Here η is the learning rate, and are the target and the output for sample , and is input of that sample. The bias weight gets the same update with input 1. Note that correctly classified samples () leave the weights unchanged.
Repeat full sweeps (epochs) over the data until one epoch produces zero mistakes.
One detail: with zero initial weights, the learning rate only scales the final weight vector. The step activation ignores that scale, so the sequence of predictions, and the number of epochs to converge, is the same for any .
percept = simplePerceptron(w=np.zeros(2), b_w=0.0, activation='step')
learningRate = 0.01
maxEpochs = 50
mistakesPerEpoch = []
for epoch in range(maxEpochs):
mistakes = 0
for i in range(len(simpleInputs)):
thisInput = simpleInputs[i:i + 1, :]
thisTarget = simpleOutputs[i]
out = percept.predict(thisInput)[0]
error = thisTarget - out
if error != 0:
mistakes += 1
percept.setWs(percept.w + learningRate * error * thisInput[0],
percept.b_w + learningRate * error)
mistakesPerEpoch.append(mistakes)
if mistakes == 0:
break
accuracy = (percept.predict(simpleInputs) == simpleOutputs).mean()
print(f'Converged after {len(mistakesPerEpoch)} epochs; mistakes per epoch: {mistakesPerEpoch}')
print(f'Weights: {percept.w}, bias: {percept.b_w:.3f}, training accuracy: {accuracy:.3f}')Converged after 2 epochs; mistakes per epoch: [42, 0]
Weights: [0.03415388 0.03796047], bias: -0.220, training accuracy: 1.000
The rule converges in a few epochs and classifies every training sample correctly. Because we use two features, the decision boundary is the line , which we can draw directly.

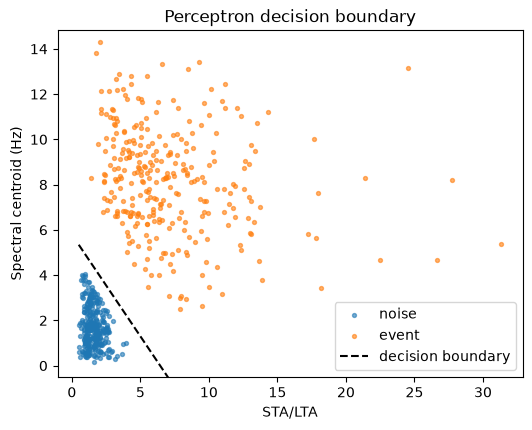

fig, ax = plt.subplots(figsize=(6, 4.5))
for lbl, name in [(0, 'noise'), (1, 'event')]:
m = simpleOutputs == lbl
ax.scatter(simpleInputs[m, 0], simpleInputs[m, 1], s=8, alpha=0.6, label=name)
# Decision boundary: w1*x1 + w2*x2 + b = 0 -> x2 = -(w1*x1 + b) / w2
x1 = np.linspace(simpleInputs[:, 0].min(), simpleInputs[:, 0].max(), 100)
x2 = -(percept.w[0] * x1 + percept.b_w) / percept.w[1]
ax.plot(x1, x2, 'k--', label='decision boundary')
ax.set_xlabel('STA/LTA')
ax.set_ylabel('Spectral centroid (Hz)')
ax.set_ylim(-0.5, simpleInputs[:, 1].max() + 0.5)
ax.set_title('Perceptron decision boundary')
ax.legend();
We just implemented an online algorithm: the weights update after every sample, not after seeing the whole dataset.
Exercise. Swap spectral_centroid_hz for kurtosis in the subset-selection cell (keep the same score-based filter on the original features). Does the learning rule still converge within 50 epochs? Why or why not?
Solution
It usually does not converge. The score filter removed the overlap in the (STA/LTA, spectral centroid) plane, but the same windows can still overlap in the (STA/LTA, kurtosis) plane. When the classes overlap, no line classifies every sample correctly, so the rule keeps making mistakes every epoch and mistakesPerEpoch never reaches zero. To make it converge you would need to re-select a subset that is separable in the new feature pair.
3. Fitting a line with gradient descent¶
The same perceptron, with no activation, is a linear model . Instead of the perceptron rule, we can train it by gradient descent on a cost function. We generate a noisy linear dataset to fit.
num = 100
xRange = [0, 5]
yRange = [0, 2.5]
rng = np.random.default_rng(1)
x = np.linspace(xRange[0], xRange[1], num=num)
y = np.linspace(yRange[0], yRange[1], num=num)
# Add uniform noise in [-0.5, 0.5]
noise_factor = 0.5
x = x + (rng.random(num) * 2 - 1) * noise_factor
y = y + (rng.random(num) * 2 - 1) * noise_factor
# Shuffle x and y together
p = rng.permutation(num)
x = x[p]

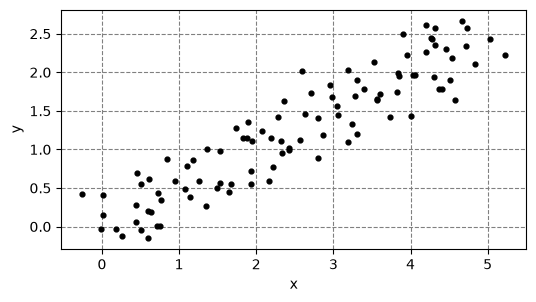

y = y[p]fig, ax = plt.subplots(figsize=(6, 4))
ax.scatter(x, y, color='k', s=12)
ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_aspect('equal')
ax.set_axisbelow(True)
ax.grid(color='gray', linestyle='dashed')
3.1 Cost function¶
We use the mean squared error (MSE) as the cost.
def mseCost(prediction, target):
mse = (np.square(prediction - target)).mean()
return mse
# Sanity check: the cost of a perfect prediction is zero
mseCost(y, y)np.float64(0.0)3.2 Gradient descent¶
Gradient descent repeats three steps: predict, measure the cost, and move the weights a small step against the cost gradient. For MSE and a linear model the weight update is and the bias update is . We stop when the cost change falls below a tolerance, the cost stops being finite (divergence), or we hit the iteration limit.
def gradientDescent(perceptron, costFunction, trainInput, trainTarget,
learningRate, numIterations, stoppingCriterion):
weights = []
biases = []
costs = []
previousCost = None
for i in range(numIterations):
# Run the prediction
prediction = perceptron.predict(trainInput)
# Determine the cost
thisCost = costFunction(prediction, trainTarget)
# Stop if the cost diverged
if not np.isfinite(thisCost):
break
# Stop if the change in cost is below the stopping criterion
if previousCost and np.absolute(previousCost - thisCost) <= stoppingCriterion:
break
previousCost = thisCost
# Record this weight, bias, and cost
weights.append(perceptron.w)
biases.append(perceptron.b_w)
costs.append(thisCost)
# Errors
er = np.subtract(trainTarget, prediction)
# Weight and bias updates
weightUpdate = learningRate * np.dot(trainInput.T, er)
biasWeightUpdate = learningRate * np.sum(er)
perceptron.setWs(perceptron.w + weightUpdate, perceptron.b_w + biasWeightUpdate)
return {'weights': weights, 'biases': biases, 'costs': costs}numIterations = 10000
# Initialize the weight and bias to zero
ourPerceptron.setWs([0], 0)
# Train on the first 50 points, keep the rest for testing
output = gradientDescent(ourPerceptron, mseCost, np.reshape(x[0:50], (-1, 1)),
y[0:50], 0.001, numIterations, 1e-6)# A function to plot outputs from gradient descent
def plotOutputs(gdOutput):
iterationsRan = len(gdOutput['costs'])
toPlot = ['weights', 'biases', 'costs']
fig, axes = plt.subplots(1, 3, figsize=(12, 4))
for i, key in enumerate(toPlot):
axes[i].plot(range(iterationsRan), gdOutput[key], color='r')
axes[i].set_xlabel('Iteration #')
axes[i].set_ylabel('Value')
axes[i].set_title(key.capitalize())
axes[i].set_axisbelow(True)
axes[i].xaxis.grid(color='gray', linestyle='dashed')
fig.tight_layout()
return fig

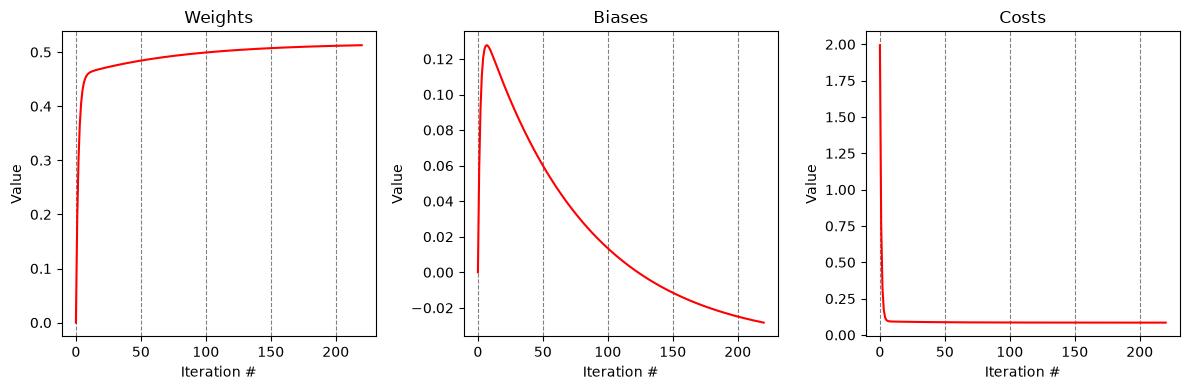

plotOutputs(output);
# Try the perceptron on data it has not seen before
testPredictions = ourPerceptron.predict(np.reshape(x[50:100], (-1, 1)))
testCost = mseCost(testPredictions, np.reshape(y[50:100], (-1, 1)))
'The mean squared error of our perceptron on the test half is: %f' % testCost'The mean squared error of our perceptron on the test half is: 1.122684'3.3 Benchmark against ordinary least squares¶
OLS solves the same problem in closed form. A gradient-descent perceptron that works should land on nearly the same line.
def compareOutputs(x, y, perceptron, xRange):
fig, ax = plt.subplots(figsize=(12, 4))
ax.scatter(x, y, color='k', s=12)
ax.set_aspect('equal')
forLine = np.linspace(xRange[0], xRange[1])
ax.plot(forLine, perceptron.predict(np.reshape(forLine, (-1, 1))),
color='r', linestyle='dotted', linewidth=1.5)
# How well do we do relative to OLS?
OLSoutput = LinearRegression().fit(x[0:50].reshape(-1, 1), y[0:50])
ax.plot(forLine, OLSoutput.predict(forLine.reshape(-1, 1)),
color='b', linestyle='dashed', linewidth=1.5)
ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_axisbelow(True)
ax.grid(color='gray', linestyle='dashed')
ax.legend(['Data', 'Perceptron fit', 'OLS fit'])
return fig

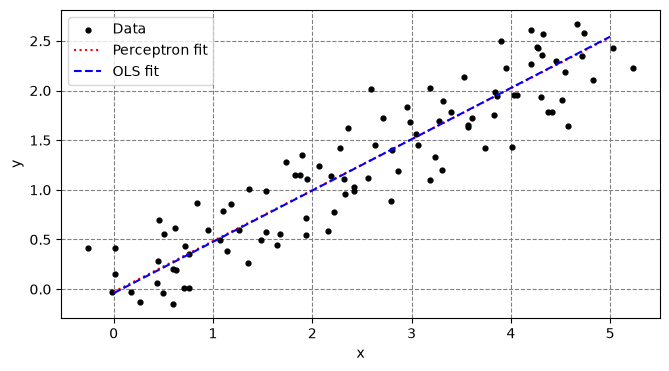

compareOutputs(x, y, ourPerceptron, xRange);
4. How the learning rate changes training¶
The learning rate η controls the step size of gradient descent. Too small and training crawls; too large and the cost oscillates or diverges. The grid below trains the same perceptron from the same zero start with four learning rates and plots the cost curve for each (log scale on the cost axis).
learningRates = [1e-5, 1e-4, 1e-3, 1e-2]

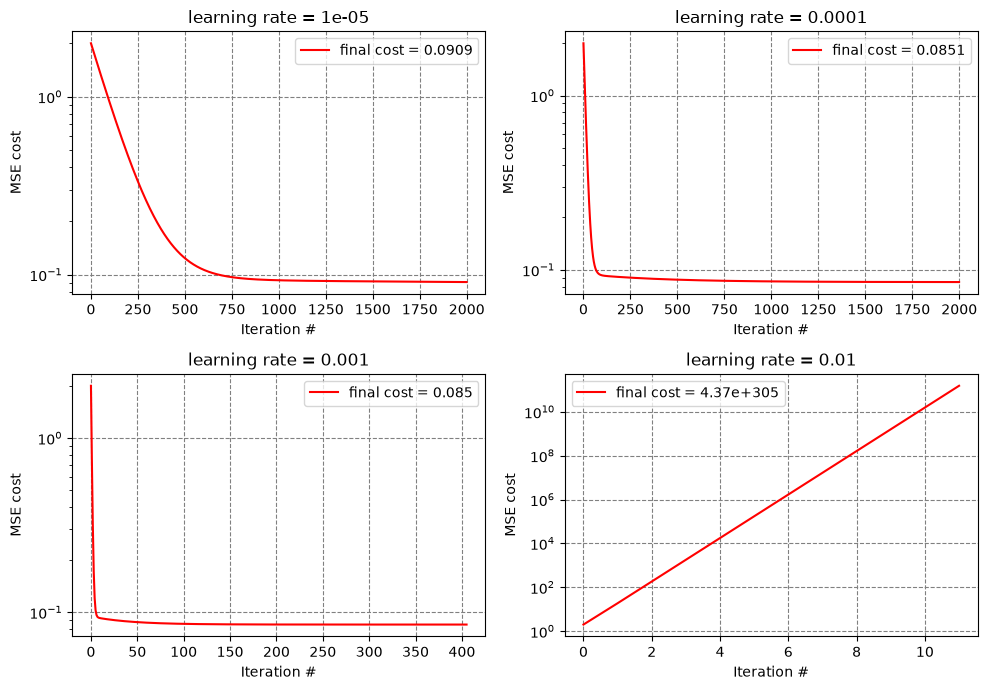

fig, axes = plt.subplots(2, 2, figsize=(10, 7))
with np.errstate(over='ignore', invalid='ignore'):
for ax, lr in zip(axes.ravel(), learningRates):
gdPerceptron = simplePerceptron(w=[0], b_w=0, activation='none')
gdOut = gradientDescent(gdPerceptron, mseCost, np.reshape(x[0:50], (-1, 1)),
y[0:50], lr, 2000, 1e-8)
costs = np.array(gdOut['costs'])
# Truncate the curve once the cost exceeds 1e12 (divergence)
plotCosts = costs[costs < 1e12]
ax.semilogy(plotCosts, color='r', label=f'final cost = {costs[-1]:.3g}')
ax.set_xlabel('Iteration #')
ax.set_ylabel('MSE cost')
ax.set_title(f'learning rate = {lr:g}')
ax.legend()
ax.set_axisbelow(True)
ax.grid(color='gray', linestyle='dashed')
fig.tight_layout()
Read the four panels: at the cost is still falling after 2000 iterations (too slow). At it converges but takes over a thousand iterations. At it converges in a few hundred iterations. At the cost grows without bound: the steps overshoot the minimum and training diverges (the curve stops where the cost becomes infinite).
4.1 Interactive explorer¶
The widget below lets you vary the learning rate, iteration count, stopping criterion, and initial weights, then retrain and replot. Widgets do not run in the static rendered book: download and run this notebook in Jupyter to use it. The static grid above shows the same lesson.
import ipywidgets as widgets
from IPython.display import display, clear_output
%matplotlib inline# Create inputs
learningRateSlider = widgets.FloatLogSlider(
value=.001,
min=-6,
max=1.0,
step=1,
description='Learning Rate:'
)
iterationsSlider = widgets.Dropdown(
options=[1, 10, 100, 1000, 10000, 100000],
value=100,
description='Number of Iterations:'
)
stoppingCriterionSlider = widgets.FloatLogSlider(
value=1e-4,
min=-8,
max=1,
step=1,
description='Stopping Criterion:'
)
startingWeight = widgets.BoundedFloatText(
value=0,
min=-50,
max=50,
description='Weight'
)
startingBias = widgets.BoundedFloatText(
value=0,
min=-50,
max=5000,
description='Bias'
)
# Create the "Update" button
updateBtn = widgets.Button(description="Update")
outputWidget = widgets.Output()
# Define the function to run when the "Update" button is clicked
def updateClick(_):
with outputWidget:
clear_output(wait=True)
learningRate = learningRateSlider.value
numIterations = iterationsSlider.value
stoppingCriterion = stoppingCriterionSlider.value
ourPerceptron.setWs([startingWeight.value], startingBias.value)
output = gradientDescent(ourPerceptron, mseCost, np.reshape(x[0:50], (-1, 1)),
y[0:50], learningRate, numIterations, stoppingCriterion)
display(compareOutputs(x, y, ourPerceptron, xRange))
display(plotOutputs(output))
# Set the function to be called when the button is clicked
updateBtn.on_click(updateClick)
# Display the widgets
display(learningRateSlider, iterationsSlider, stoppingCriterionSlider,
startingWeight, startingBias, updateBtn, outputWidget)Summary¶
- A perceptron is a weighted sum plus a bias, passed through an activation function.
- The classic perceptron learning rule converges only on linearly separable data. It separated our event and noise windows using two detector features, and the two-feature choice let us draw the decision boundary.
- With no activation, the same perceptron is a linear regressor. Gradient descent on the MSE cost recovers nearly the same line as OLS.
- The learning rate sets the trade-off between slow convergence and divergence.
Next: 4.1 Neural Networks stacks perceptrons into layers to handle data that a single line cannot separate.
