The three pillars lab, session II:
uncertainty you can defend

Session 25 · Mon Nov 30 · Book section 4.5 (§4–5)

🎲

Today’s question

Two ways to get an uncertainty estimate: five training runs, or one.

When your model says 80%, should anyone believe it — and did you check?

Resume at Wednesday’s checkpoint: 4.5 §4–5 · Ch 5 flipped reading assigned today (quiz closes Thu Dec 3)

Second lab session on the same notebook; ten minutes of deck, then the room resumes at the marked checkpoint (restart the kernel, rerun the Section 1 setup and helper cells, continue from Section 4). Today’s arc: two uncertainty methods head-to-head, then two distinct questions to ask of any uncertainty estimate — can I trust the ranking (discrimination), can I trust the number (calibration) — and finally what happens when the model leaves the range it was trained on. Announce the flipped Ch 5 reading (5.1–5.5, reproducibility through data at scale) — it is examinable through the quiz that closes Thursday, and Friday’s session discusses it. The question on screen is the session’s discipline: every probability you report is a claim someone else may act on.

This lecture in the literature

✓ Deep ensembles: train the same network from several seeds; the disagreement is the uncertainty signal. Today’s expensive contestant.

Lakshminarayanan, B., Pritzel, A., & Blundell, C. (2017). Simple and scalable predictive uncertainty estimation using deep ensembles. NeurIPS 30.

✓ MC dropout: leave dropout on at prediction time and one trained model yields an uncertainty estimate. Today’s cheap contestant.

Gal, Y., & Ghahramani, Z. (2016). Dropout as a Bayesian approximation: Representing model uncertainty in deep learning. ICML.

✗ The audit nobody had run: modern networks state confidences far above their accuracy — miscalibration went unmeasured for years.

Guo, C., Pleiss, G., Sun, Y., & Weinberger, K. Q. (2017). On calibration of modern neural networks. ICML.

📖 The head-to-head under distribution shift: where the ensemble’s documented advantage actually lives — and why our small-MLP verdict differs.

Ovadia, Y., et al. (2019). Can you trust your model’s uncertainty? Evaluating predictive uncertainty under dataset shift. NeurIPS 32.

Both methods are canon. Which one your project needs is a measurement, not a doctrine — today you make it.

Two minutes. Lakshminarayanan: deep ensembles — train the same architecture from several seeds, use the disagreement; the standard expensive method, and the notebook cites it. Gal & Ghahramani: MC dropout — keep dropout active at prediction time, sample the network many times; one training run, and the notebook cites it too. Guo is the cautionary tale: nobody had audited the confidences of modern networks until 2017, and they were far too sure of themselves — calibration went unmeasured while the field celebrated accuracy. Ovadia is the large-scale head-to-head under distribution shift, where ensembles genuinely earn their cost — useful context for why our small-MLP verdict below is not a general law. That tension — method reputation vs measured behavior on your task — is today’s lab.

Five training runs vs one

	test accuracy	ECE	models trained
Deep ensemble (5 members)	0.949	0.017	5
MC dropout (T = 50 passes)	0.952	0.011	1

ECE, expected calibration error: the average gap between stated confidence and observed accuracy. The 50 dropout passes are the cheap side; training runs are the expensive one.

On this task, the single dropout model matched the 5-member ensemble at a fifth of the training cost. The numbers refuse to crown the expensive method.

The honest comparison: same data, same test set, cost stated next to the scores. MC dropout matches on accuracy (the 0.003 gap sits inside a single run’s seed spread), edges the ensemble on calibration, and draws the same discrimination curve — accuracy in the highest-spread quintile 0.79 vs 0.77, the other four quintiles agreeing to three decimals. When one training run takes a week, this table is a budget decision. Why ensembles survive in practice anyway: their documented calibration advantage appears on large networks under distribution shift (the Ovadia result), members train in parallel, and their disagreement comes from genuinely independent solutions — the property the out-of-range experiment uses. The final-project milestone asks for one of these two analyses on your own model.

Calibration is a measurement, not a method property

An earlier draft of the book claimed the ensemble improves calibration. The measurement said no — on this task there was nothing to fix. “Well calibrated” is a number you attach after running the cell. Synthetic lithology table (mlgeo_synth).

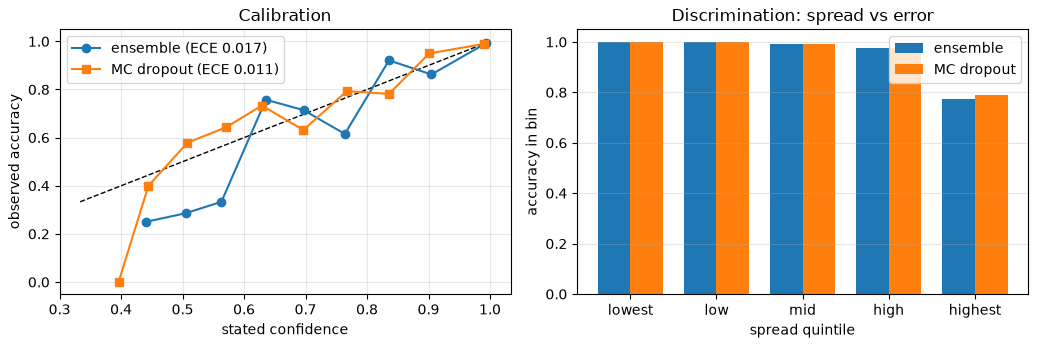

Synthetic lithology task (mlgeo_synth), clean test set. Left: reliability — bin samples by stated confidence, plot observed accuracy; the diagonal is honesty; both methods hug it, ECE 0.011 vs 0.017. Right: discrimination — bin by spread, watch accuracy fall across quintiles; both fall the same way. Keep the two diagnostics distinct in write-ups: the quintile plot answers “can I trust the ranking?” (routing samples to an analyst — only order matters); the reliability diagram answers “can I trust the number?” (required whenever the probability feeds a decision threshold someone else owns — lesson 3.6’s warning). Reporting one as evidence for the other is the exact error the earlier draft contained, and it survives peer review depressingly often. The published literature’s ensemble-calibration advantage is real on large networks under shift; our two-layer MLP was simply not miscalibrated enough to fix. Both claims can be true — that is the point.

Out of range: does disagreement warn you?

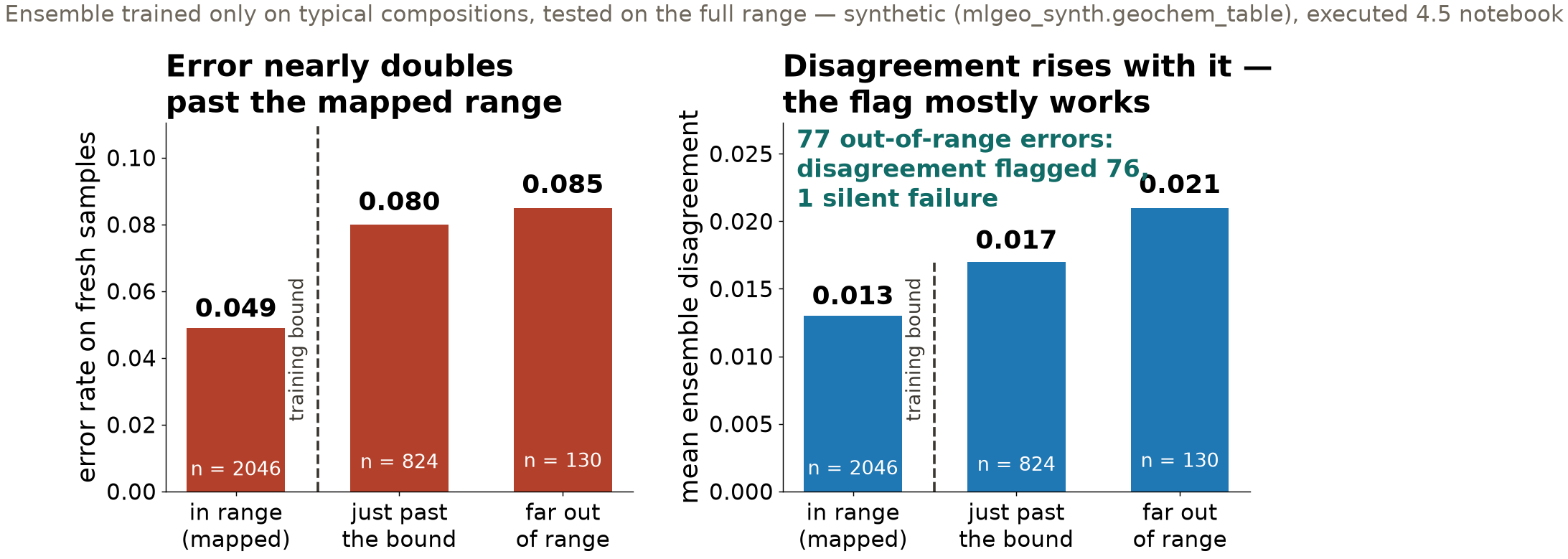

Disagreement flagged 76 of the 77 extrapolation errors. The one silent failure is today’s discussion: its features drifted into a neighboring class’s familiar territory, so all five members confidently agreed — on the wrong label.

The setup: the field campaign mapped only typical granites, basalts, andesites — training keeps samples within one standard deviation of each unit’s typical composition — then the test draw spans the full range, including compositions the model never saw. Error nearly doubles across the training bound (4.9% → 8.0% → 8.5%); mean disagreement rises with it. The mechanism to memorize is the one failure the flag missed: an extreme composition that came to look familiar. Disagreement flags unfamiliar regions of feature space; it cannot flag a sample whose label changed while its features landed somewhere the model knows. Under a larger shift, that one sample becomes a population. Second caution from the notebook’s scatter: the in-range and out-of-range disagreement distributions overlap heavily — no threshold on the spread reconstructs the training bound. The bound is metadata only you have. Connect back to 3.8: interpolation and extrapolation are different claims, and the split decides which claim your score supports.

Your training distribution is a contract

• Every number this lab produced is valid inside the ranges the training data covered
• No diagnostic computed in range certifies behavior out of range
• State the ranges when you release the model; predictions beyond them are unwarranted until labels say otherwise

The range statement belongs next to the model, in writing — it cannot be inferred from the model’s behavior.

This is the slide to hold for a beat. Deployment breaks the in-range assumption routinely: the mapped area ends, the next pluton is more evolved than anything in the survey, the new station sits on softer ground. Accuracy, ECE, the quintile plots — all terms of a contract whose jurisdiction is the training ranges. For final projects this becomes a required sentence in the report: the ranges your training data covered, stated alongside every score. Ask each team to draft that sentence during synthesis.

Now run it yourself — resume 4.5 at Section 4

1. Restart the kernel; rerun the Section 1 setup and helper cells; continue from Section 4
2. Train the 5-member ensemble, then the MC dropout model; reproduce the head-to-head table
3. Run the reliability and quintile diagnostics — which question does each answer?
4. Run the out-of-range experiment; find the silent failure and explain its mechanism
5. Section 5 sweeps (learning rate, batch size, early stopping) + the six broken runs — diagnose before opening the solution

Wed: forecasting shootout (4.10), leaderboard opens · Ch 5 quiz closes Thu Dec 3 · HW-DL due Fri Dec 4

Timing for the 80-minute block (10:00–11:20): no pulse talks on 4.5 lab days; deck ~10 min, lab ~60 min, synthesis ~10 min — collect each team’s one-sentence training-range contract, and one diagnosis from the six broken runs. The six broken runs are the exam real projects keep administering: overfitting, leakage, learning rate too high/too low, label noise, underfitting — curves first, code after. Implementation names live in the notebook (dropout stays in train() mode for MC passes; reliability helper computes ECE). Students short on time: prioritize tasks 2–4; Section 5’s sweeps can be homework-adjacent since HW-DL exercises the same diagnostics.
