2.11 Ingeniería de características

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

rng = np.random.default_rng(42)

# Create a 3-year daily time series with trend and seasonality
t = np.arange(0, 365 * 3)
seasonal_series = rng.standard_normal(3 * 365) + np.linspace(0, 10, 3 * 365) + \
    2 * np.sin(2 * np.pi * np.linspace(0, 3, 3 * 365))

# fit a trend using least squares regression
slope, intercept = np.polyfit(t, seasonal_series, 1)
trend = slope * t + intercept
# the seasonal component is what remains after removing the trend
seasonal = seasonal_series - trend
# lag-1 autocorrelation of the detrended series
autocorr_seasonal = np.corrcoef(seasonal[:-1], seasonal[1:])[0, 1]
print(f'Lag-1 autocorrelation of the detrended seasonal series: {autocorr_seasonal:.2f}')

# Plot the original time series, trend, and seasonal component

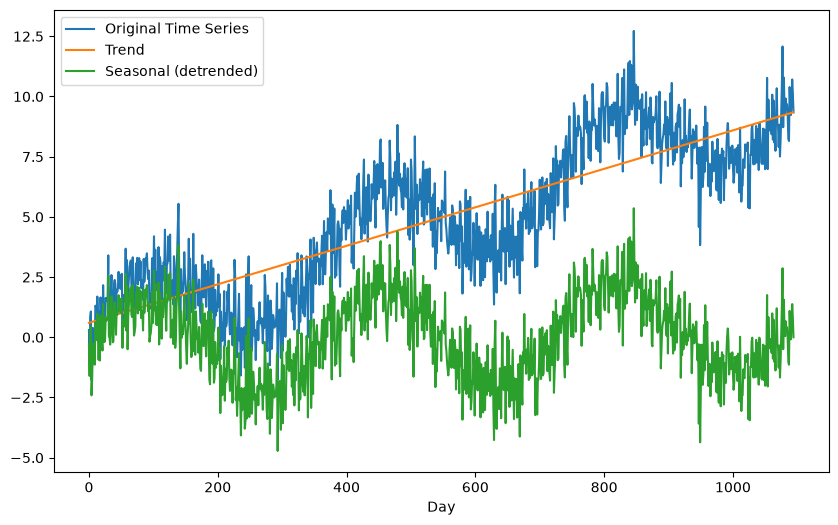

plt.figure(figsize=(10, 6))
plt.plot(seasonal_series, label='Original Time Series')
plt.plot(trend, label='Trend')
plt.plot(seasonal, label='Seasonal (detrended)')
plt.xlabel('Day')
plt.legend()

white_series = rng.standard_normal(3 * 365)

autocorr_white = np.corrcoef(white_series[:-1], white_series[1:])[0, 1]
print(f'Lag-1 autocorrelation of the detrended seasonal series: {autocorr_seasonal:.2f}')
print(f'Lag-1 autocorrelation of white noise:                   {autocorr_white:.2f}')

from scipy.ndimage import gaussian_filter
from scipy.fft import fft2, ifft2, fftshift

# Generate a 2D grid (e.g., geospatial data, such as a topographic map)
n = 100  # size of the grid
x = np.linspace(0, 10, n)
y = np.linspace(0, 10, n)
X2d, Y2d = np.meshgrid(x, y)

# 2D white noise
white_noise_2d = rng.standard_normal((n, n))

# Spatially correlated noise: smooth the white noise with a Gaussian filter
spatially_correlated_noise = gaussian_filter(white_noise_2d, sigma=3)

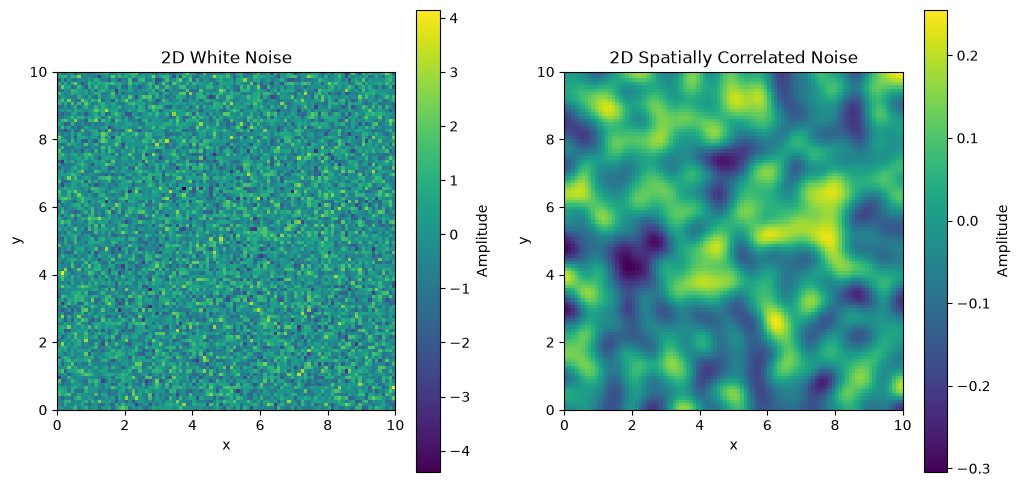

plt.figure(figsize=(12, 6))

plt.subplot(1, 2, 1)
plt.imshow(white_noise_2d, extent=[0, 10, 0, 10], cmap='viridis')
plt.xlabel('x')
plt.ylabel('y')
plt.colorbar(label='Amplitude')
plt.title('2D White Noise')

plt.subplot(1, 2, 2)
plt.imshow(spatially_correlated_noise, extent=[0, 10, 0, 10], cmap='viridis')
plt.xlabel('x')
plt.ylabel('y')
plt.colorbar(label='Amplitude')
plt.title('2D Spatially Correlated Noise')

# 2D Fourier transform of the white noise
fft_white_noise = fft2(white_noise_2d)

# power spectrum
power_spectrum = np.abs(fft_white_noise) ** 2

# inverse transform of the power spectrum gives the autocorrelation function
autocorrelation_white = np.real(ifft2(power_spectrum))

# shift the zero-lag component to the center
autocorrelation_white = fftshift(autocorrelation_white)

# normalize
autocorrelation_white /= autocorrelation_white.max()

fft_noise = fft2(spatially_correlated_noise)
power_spectrum = np.abs(fft_noise) ** 2
autocorrelation = np.real(ifft2(power_spectrum))
autocorrelation = fftshift(autocorrelation)
autocorrelation /= autocorrelation.max()

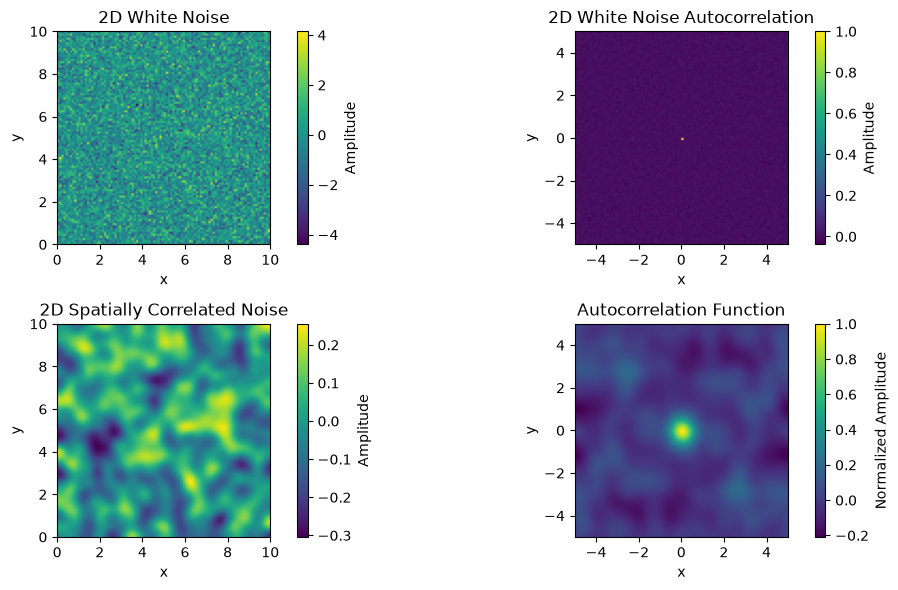

plt.figure(figsize=(11, 6))

# White noise (unfiltered)
plt.subplot(2, 2, 1)
plt.imshow(white_noise_2d, extent=[0, 10, 0, 10], cmap='viridis')
plt.xlabel('x')
plt.ylabel('y')
plt.colorbar(label='Amplitude')
plt.title('2D White Noise')

plt.subplot(2, 2, 2)
plt.imshow(autocorrelation_white, extent=[-5, 5, -5, 5], cmap='viridis')
plt.xlabel('x')
plt.ylabel('y')
plt.colorbar(label='Amplitude')
plt.title('2D White Noise Autocorrelation')

# Spatially correlated noise
plt.subplot(2, 2, 3)
plt.imshow(spatially_correlated_noise, extent=[0, 10, 0, 10], cmap='viridis')
plt.xlabel('x')
plt.ylabel('y')
plt.colorbar(label='Amplitude')
plt.title('2D Spatially Correlated Noise')

plt.subplot(2, 2, 4)
plt.imshow(autocorrelation, extent=[-5, 5, -5, 5], cmap='viridis')
plt.xlabel('x')
plt.ylabel('y')
plt.colorbar(label='Normalized Amplitude')
plt.title('Autocorrelation Function')

plt.tight_layout()
plt.show()

center = n // 2
# correlation length for the white noise
autocorr_center = autocorrelation_white[center, center:]
distances = np.linspace(0, 5, center)
correlation_length_white = np.interp(1 / np.e, autocorr_center[::-1], distances[::-1])

# correlation length for the spatially correlated noise
autocorr_center = autocorrelation[center, center:]
correlation_length = np.interp(1 / np.e, autocorr_center[::-1], distances[::-1])

print(f'Estimated correlation length for white noise: {correlation_length_white:.2f} '
      f'and for spatially correlated noise: {correlation_length:.2f}')

def higuchi_fd(series, kmax=10):
    """Higuchi fractal dimension of a 1D time series.

    Builds kmax coarse-grained versions of the series, measures the mean
    curve length at each scale k, and fits the slope of
    log(length) vs log(1/k). Returns the estimated fractal dimension,
    between 1 (smooth) and 2 (rough).
    """
    series = np.asarray(series, dtype=float)
    npts = len(series)
    lengths = []
    for k in range(1, kmax + 1):
        lk = []
        for m in range(k):
            idx = np.arange(m, npts, k)
            if len(idx) < 2:
                continue
            dist = np.sum(np.abs(np.diff(series[idx])))
            # normalization factor for the subsampled curve
            norm = (npts - 1) / (len(idx) - 1) / k
            lk.append(dist * norm / k)
        lengths.append(np.mean(lk))
    coeffs = np.polyfit(np.log(1.0 / np.arange(1, kmax + 1)), np.log(lengths), 1)
    return coeffs[0]


print(f'Higuchi fractal dimension of white noise:         '
      f'{higuchi_fd(white_series):.2f}')
print(f'Higuchi fractal dimension of the seasonal series: '
      f'{higuchi_fd(seasonal_series):.2f}')
smooth_series = gaussian_filter(white_series, sigma=5)
print(f'Higuchi fractal dimension of smoothed noise:      '
      f'{higuchi_fd(smooth_series):.2f}')

# Import modules for seismic data and feature extraction
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import scipy
import scipy.stats as st
import os
import urllib.request
import h5py  # for reading .h5 files

os.makedirs('data', exist_ok=True)

base_url = 'https://dasway.ess.washington.edu/shared/niyiyu/PNW-ML'
metadata_path = './data/miniPNW_metadata.csv'
waveform_path = './data/miniPNW_waveforms.hdf5'

# metadata: small CSV, always download if missing
if not os.path.exists(metadata_path):
    urllib.request.urlretrieve(f'{base_url}/miniPNW_metadata.csv', metadata_path)
print(f'Metadata file present: {os.path.exists(metadata_path)}')

# waveforms: large HDF5, guarded download
if not os.path.exists(waveform_path):
    try:
        print('Downloading waveform file (large, be patient)...')
        urllib.request.urlretrieve(f'{base_url}/miniPNW_waveforms.hdf5',
                                   waveform_path)
    except Exception as e:
        if os.path.exists(waveform_path):
            os.remove(waveform_path)  # remove partial file
        raise RuntimeError(
            'Could not download miniPNW_waveforms.hdf5 from '
            f'{base_url}. Check your network connection, or place the file '
            'manually in ./data/. Original error: ' + repr(e)) from e
print(f'Waveform file present: {os.path.exists(waveform_path)}')

df = pd.read_csv(metadata_path)
# Display the first few rows of the DataFrame
df.head()

df['source_type'].unique()

labels = df['source_type']
print(labels.value_counts())

counts = labels.value_counts()
fractions = counts / counts.sum()
for name, count in counts.items():
    print(f'{name:>15s}: {count:5d} waveforms ({100 * fractions[name]:.1f}%)')

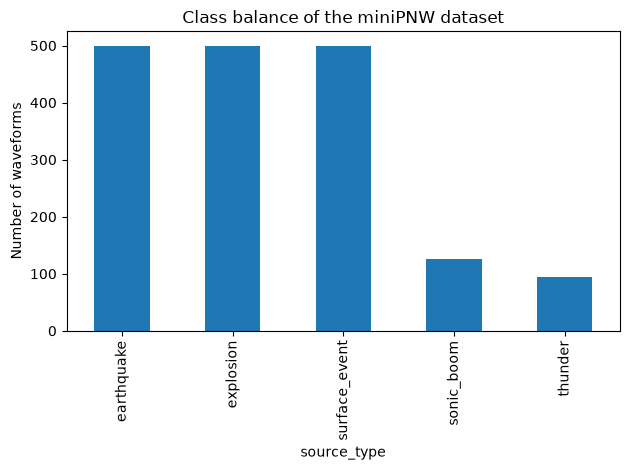

counts.plot(kind='bar')
plt.ylabel('Number of waveforms')
plt.title('Class balance of the miniPNW dataset')
plt.tight_layout()

chan_list = ['N', 'E', 'Z']

if os.path.exists(waveform_path):
    f = h5py.File(waveform_path, 'r')
else:
    print('Waveform file not found: skipping waveform cells.')

def read_data(tn, f):
    """
    Read the waveform data from the .h5 file.
    tn: trace_name of the waveform
    f: open h5py file object
    """
    bucket, narray = tn.split('$')  # split trace_name into bucket and indices
    x, y, z = [int(i) for i in narray.split(',:')]
    data = f['/data/%s' % bucket][x, :y, :z]  # read the data as a 2D array
    return data

trace_names = list(df['trace_name'])
trace_names[0]

if os.path.exists(waveform_path):
    example_waveform = read_data(trace_names[530], f)
    print(f'The first dimension of the data is {example_waveform.shape[0]}')
    print(f'The second dimension of the data is {example_waveform.shape[1]}')

    # the time vector goes from -50 to 100 s around the pick, at 100 Hz
    t = np.linspace(-50, 100, example_waveform.shape[1])

    # plot an example of the data in a 3-row subplot

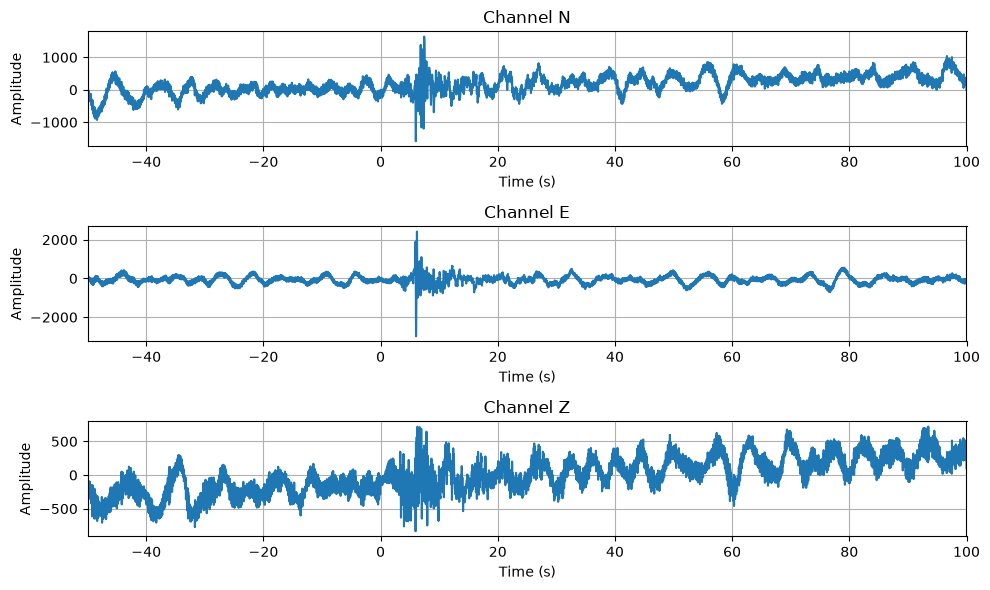

    fig, ax = plt.subplots(3, 1, figsize=(10, 6))
    for i in range(3):
        ax[i].plot(t, example_waveform[i, :])
        ax[i].set_title(f'Channel {chan_list[i]}')
        ax[i].set_xlabel('Time (s)')
        ax[i].set_ylabel('Amplitude')
        ax[i].grid(True)
        ax[i].set_xlim(-50, 100)
    plt.tight_layout()
else:
    print('Waveform file not found: skipping waveform plot.')

if os.path.exists(waveform_path):
    nt = example_waveform.shape[-1]
    ndata = len(labels)
    Z = np.zeros(shape=(ndata, nt))
    for i in range(ndata):
        Z[i, :] = read_data(df.iloc[i]['trace_name'], f)[2, :nt]
    print(f'We have a total of {Z.shape[0]} data samples and each has '
          f'{Z.shape[1]} data points')
else:
    print('Waveform file not found: skipping waveform stacking.')

import tsfel

cfg = tsfel.get_features_by_domain()
print(list(cfg.keys()))

def calculate_features(Z, indices, df, cfg, fs=100.0):
    """
    Calculate tsfel features for a subset of waveforms.
    Z: 2D array of seismic data (n_waveforms, n_samples)
    indices: which rows of Z to process
    df: metadata DataFrame (for the source_type label)
    cfg: tsfel feature configuration

    Returns:
    X: DataFrame of features, one row per waveform, with a source_type column
    """
    rows = []
    for count, i in enumerate(indices):
        if count % 20 == 0:
            print(f'Extracting features from sample {count}/{len(indices)}')
        Xi = tsfel.time_series_features_extractor(cfg, Z[i, :], fs=fs, verbose=0)
        Xi['source_type'] = df.iloc[i]['source_type']
        rows.append(Xi)
    X = pd.concat(rows, axis=0, ignore_index=True)
    # remove the 0_ prefix that tsfel adds to every column name
    X.columns = X.columns.str.removeprefix('0_')
    return X

if os.path.exists(waveform_path):
    import time
    n_subset = min(200, ndata)
    subset_rng = np.random.default_rng(42)
    subset_idx = subset_rng.choice(ndata, size=n_subset, replace=False)

    start = time.time()
    X = calculate_features(Z, subset_idx, df, cfg)
    end = time.time()
    print(f'Time taken to calculate features for {n_subset} waveforms: '
          f'{end - start:.2f} seconds')
else:
    print('Waveform file not found: skipping feature extraction.')

if os.path.exists(waveform_path):
    display(X.head())
else:
    print('Waveform file not found: no features to show.')

if os.path.exists(waveform_path):
    print(f'no of samples in the dataframe: {X.shape[0]}')
    # Replace infinities with NaN
    new_X = X.replace([np.inf, -np.inf], np.nan, inplace=False)
    # Drop rows with NaN values
    new_X = new_X.dropna(inplace=False)
    print(f'no of samples in the new dataframe: {new_X.shape[0]}')
else:
    print('Waveform file not found: skipping cleanup.')

if os.path.exists(waveform_path):
    import seaborn as sns

    # Compute pairwise correlation of columns

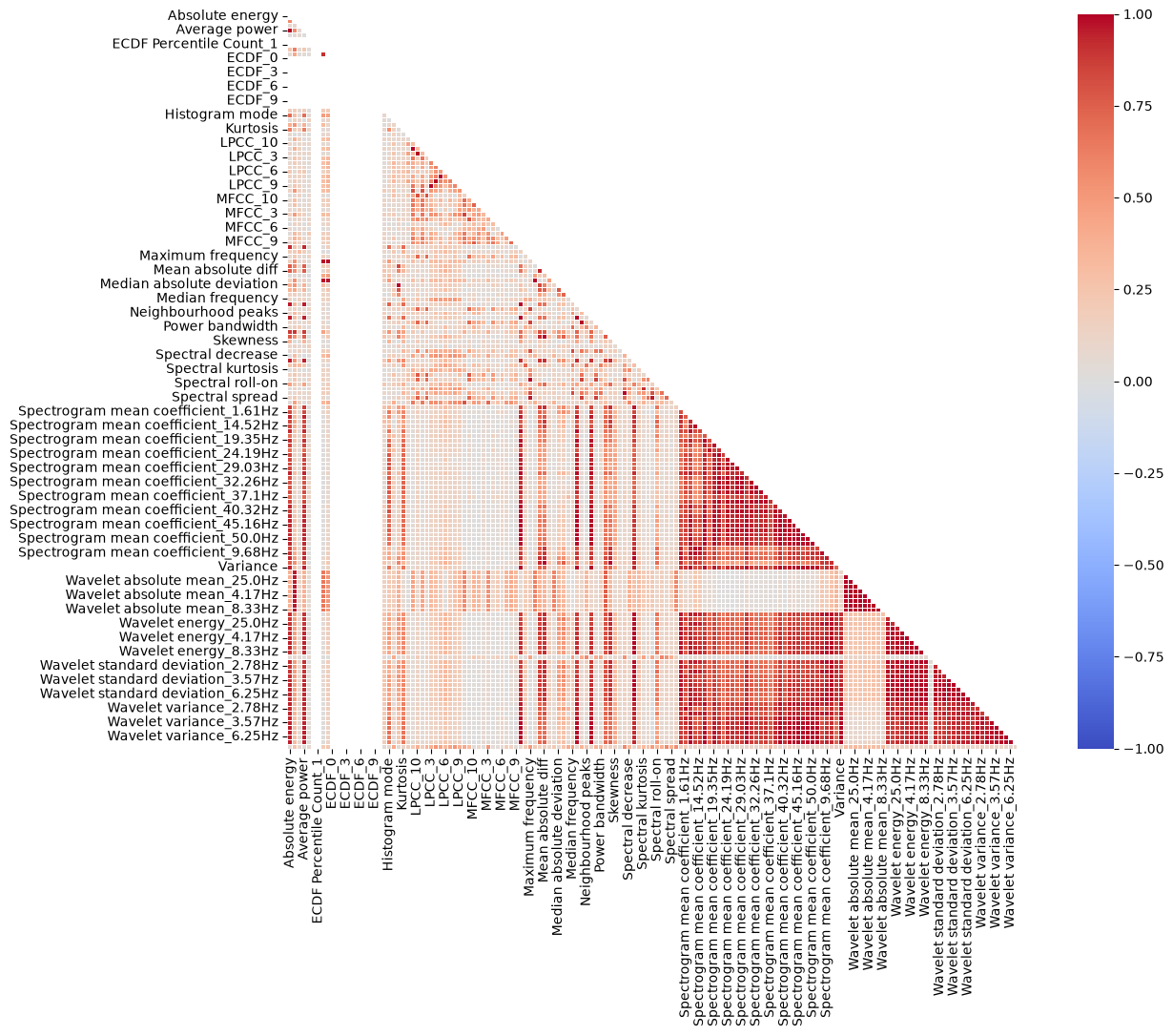

    corr_matrix = new_X.drop('source_type', axis=1).corr().abs()

    # Mask the upper triangle (the matrix is symmetric)
    mask = np.triu(np.ones_like(corr_matrix, dtype=bool))

    plt.figure(figsize=(15, 10))
    sns.heatmap(corr_matrix, mask=mask, cmap='coolwarm', vmax=1, vmin=-1,
                center=0, square=True, linewidths=.5, annot=False)
    plt.show()
else:
    print('Waveform file not found: skipping correlation heatmap.')

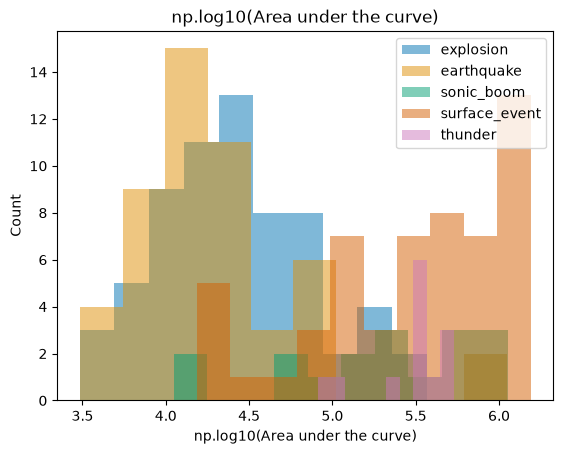

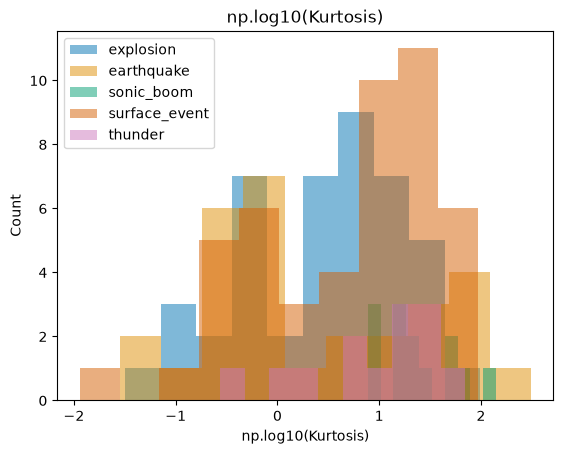

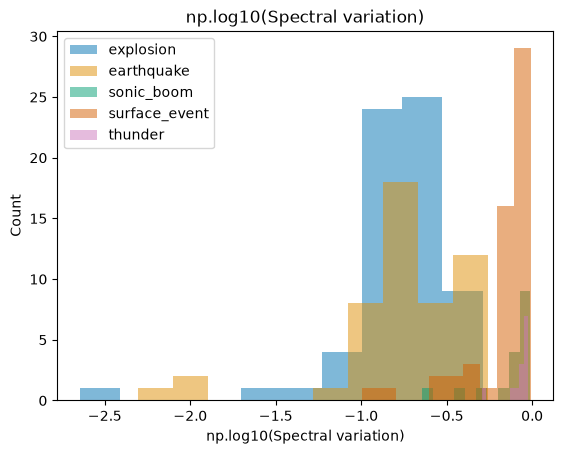

def plot_feature_histograms(new_X, feature):
    import seaborn as sns
    # Get unique source types
    source_types = new_X['source_type'].unique()

    # colorblind-friendly palette
    colors = sns.color_palette('colorblind')

    for i, source_type in enumerate(source_types):
        # Select data for this source type
        data = new_X[new_X['source_type'] == source_type][feature]

        # Plot histogram for this source type
        plt.hist(np.log10(data), color=colors[i % len(colors)], alpha=0.5,
                 label=source_type)

    plt.title(f'np.log10({feature})')
    plt.xlabel(f'np.log10({feature})')
    plt.ylabel('Count')
    plt.legend()
    plt.show()

if os.path.exists(waveform_path):
    feature = 'Area under the curve'
    plot_feature_histograms(new_X, feature)

    feature = 'Kurtosis'
    plot_feature_histograms(new_X, feature)

    feature = 'Spectral variation'
    plot_feature_histograms(new_X, feature)
else:
    print('Waveform file not found: skipping feature histograms.')

if os.path.exists(waveform_path):
    # Answer scaffold: rank features by class separation.
    # Step 1: group the features by class.
    grouped = new_X.groupby('source_type')

    # Step 2: for each feature, compute the spread of the class means
    #         divided by the mean within-class standard deviation.
    feature_cols = new_X.columns.drop('source_type')
    class_means = grouped[feature_cols].mean()
    class_stds = grouped[feature_cols].std()
    separation = class_means.std(axis=0) / class_stds.mean(axis=0)

    # Step 3: sort and show the 10 most discriminative features.
    top10 = separation.sort_values(ascending=False).head(10)
    print(top10)

    # Step 4 (your turn): plot histograms of the top-ranked features with
    # plot_feature_histograms(new_X, feature) and check the separation by eye.
    # Step 5 (your turn): does the ranking change if you normalize each
    # feature first? Try (new_X - mean) / std before Step 2.
else:
    print('Waveform file not found: skipping student exercise scaffold.')
