Data prep: Simple CNN#

Author: Yifei Hang (UW Varanasi intern 2024) and adapted by Eli Holmes

This notebook shows how to create a data set ready for sending to ML models. We will send the data to our models as xarray objects (which are numpy arrays with metadata added).

import xarray as xr
import numpy as np

zarr_ds = xr.open_zarr("~/shared-public/mind_the_chl_gap/IO.zarr")
zarr_sliced = zarr_ds.sel(lat=slice(35, -5), lon=slice(45,90))
all_nan_CHL = np.isnan(zarr_sliced["CHL_cmes-level3"]).all(dim=["lon", "lat"]).compute()  # find sample indices where CHL is NaN
zarr_CHL = zarr_sliced.sel(time=(all_nan_CHL == False))  # select samples with CHL not NaN
zarr_CHL = zarr_CHL.sortby('time')
zarr_CHL = zarr_CHL.sel(time=slice('2020-01-01', '2020-12-31'))
zarr_CHL

<xarray.Dataset> Size: 958MB
Dimensions:                       (time: 366, lat: 149, lon: 181)
Coordinates:
  * lat                           (lat) float32 596B 32.0 31.75 ... -4.75 -5.0
  * lon                           (lon) float32 724B 45.0 45.25 ... 89.75 90.0
  * time                          (time) datetime64[ns] 3kB 2020-01-01 ... 20...
Data variables: (12/27)
    CHL                           (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    CHL_cmes-cloud                (time, lat, lon) uint8 10MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    CHL_cmes-gapfree              (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    CHL_cmes-land                 (lat, lon) uint8 27kB dask.array<chunksize=(149, 181), meta=np.ndarray>
    CHL_cmes-level3               (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    CHL_cmes_flags-gapfree        (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    ...                            ...
    ug_curr                       (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    v_curr                        (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    v_wind                        (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    vg_curr                       (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    wind_dir                      (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
    wind_speed                    (time, lat, lon) float32 39MB dask.array<chunksize=(39, 149, 181), meta=np.ndarray>
Attributes: (12/92)
    Conventions:                     CF-1.8, ACDD-1.3
    DPM_reference:                   GC-UD-ACRI-PUG
    IODD_reference:                  GC-UD-ACRI-PUG
    acknowledgement:                 The Licensees will ensure that original ...
    citation:                        The Licensees will ensure that original ...
    cmems_product_id:                OCEANCOLOUR_GLO_BGC_L3_MY_009_103
    ...                              ...
    time_coverage_end:               2024-04-18T02:58:23Z
    time_coverage_resolution:        P1D
    time_coverage_start:             2024-04-16T21:12:05Z
    title:                           cmems_obs-oc_glo_bgc-plankton_my_l3-mult...
    westernmost_longitude:           -180.0
    westernmost_valid_longitude:     -180.0

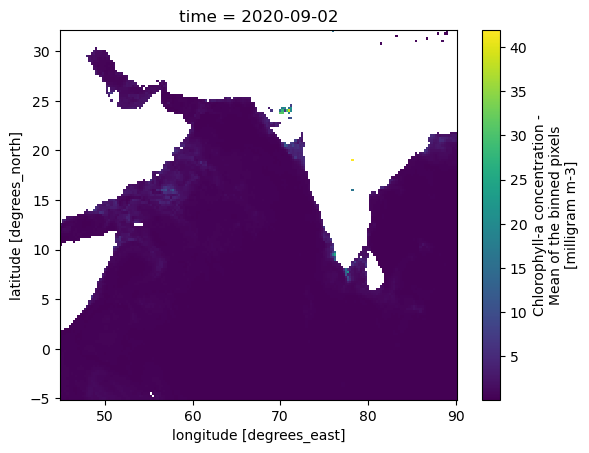

p = zarr_CHL.sel(time='2020-09-02').CHL.plot(y='lat', x='lon')
../_images/c5fc1dd9f70f95ec9343fe99be816542b82dfd887d970a79755bb32e07583ef8.png

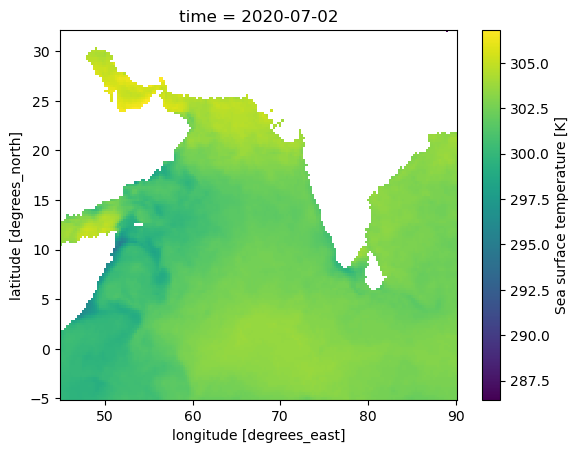

p = zarr_CHL.sel(time='2020-07-02').sst.plot(y='lat', x='lon')
../_images/be55408baa16965a24f1ef5004019b8df0fd31d585565d68f7da2f56e257fc71.png

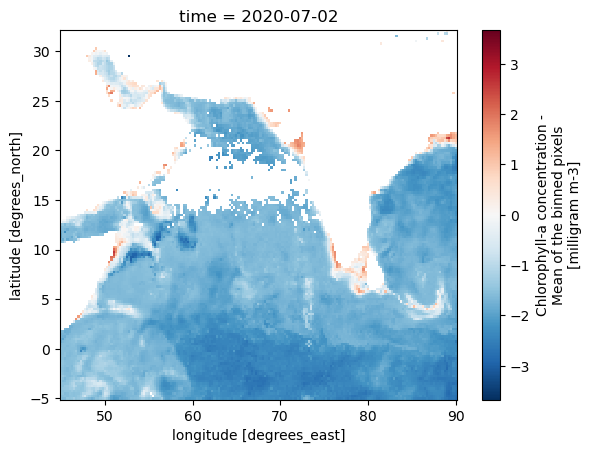

# log scale
np.log(zarr_CHL.sel(time='2020-07-02').CHL).plot(y='lat', x='lon')

<matplotlib.collections.QuadMesh at 0x7f28289232d0>
../_images/63f7dbca46fe1167aab9c07021f69da24568866caab7e74c044864adac639428.png

Process the data#

We need to split into our training and testing data.

def log_label(data, label):
    data_logged = data.copy()
    data_logged[label] = np.log(data[label]).copy()
    return data_logged

# Add more preprocessing later
def preprocess_data(data, features, label):
    # sel_data = data[features + label]
    # sel_data = da.where(da.isnan(sel_data), 0.0, sel_data)
    data_logged = log_label(data, label)

    sel_data_list = []
    for var in (features + [label]):
        sel_var_data = data_logged[var]
        sel_var_data = da.where(da.isnan(sel_var_data), 0.0, sel_var_data)
        sel_data_list.append(sel_var_data)
        # print(data[var]).shape
    # sel_data_da = da.from_array(sel_data_arr)
    # sel_data = da.where(da.isnan(sel_data_da), 0.0, sel_data_da)
    sel_data_da =  da.array(sel_data_list)
    # sel_data_da = np.moveaxis(sel_data_da, 0, -1)
    return sel_data_da

def time_series_split(data, split_ratio):
    X = data[:-1]
    y = data[-1]

    X = np.moveaxis(X, 0, -1)

    total_length = X.shape[0]

    train_end = int(total_length * split_ratio[0])
    val_end = int(total_length * (split_ratio[0] + split_ratio[1]))

    X_train, y_train = X[:train_end], y[:train_end]
    X_val, y_val = X[train_end: val_end], y[train_end: val_end]
    X_test, y_test = X[val_end:], y[val_end:]

    return (X_train, y_train,
            X_val, y_val,
            X_test, y_test)

Here we create our training and test data with 2 variables using only 2020. 70% data for training, 20% for validation and 10% for testing.

 # Curr Features: Sea Surface Temp (K), Sea Salinity Concentration (m**-3 or PSL). [Excluding Topography/Bathymetry (m)]
features = ['sst', 'so']
label = 'CHL_cmes-level3'  # chlorophyll-a concentration (mg/m**3) [Not taking uncertainty into consideration for now]
model_data = preprocess_data(zarr_CHL, features, label)

split_ratio = [.7, .2, .1]
X_train, y_train, X_val, y_val, X_test, y_test = time_series_split(model_data, split_ratio)
